1000 KVA, Pri 4160 D, Sec 480Y/277, WESTINGHOUSE, SILICONE:   Our stock number: 41364

1000 KVA, Pri 4160 D, Sec 480Y/277, WESTINGHOUSE, SILICONE:

Click on picture below for larger version
1000 KVA, Pri 4160 D, Sec 480Y/277, WESTINGHOUSE, SILICONE:1000 KVA, Pri 4160 D, Sec 480Y/277, WESTINGHOUSE, SILICONE:1000 KVA, Pri 4160 D, Sec 480Y/277, WESTINGHOUSE, SILICONE:1000 KVA, Pri 4160 D, Sec 480Y/277, WESTINGHOUSE, SILICONE:

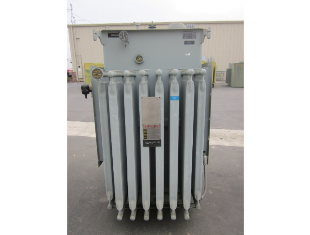

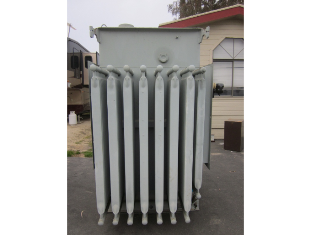

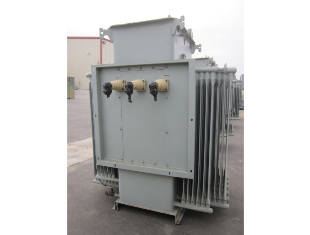

ONE (1) 1000 KVA WESTINGHOUSE SUBSTATION TRANSFORMER
SILICONE, CLASS OA, THREE PHASE, 65 DEG. C RISE

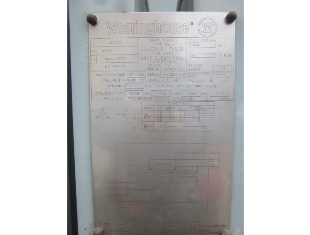

SERIAL NO. PAL3534-0102, IMP. 6.28%, INST. BOOK PC-1002

HV: 4160 DELTA BIL: 60 KV
LV: 480Y/277 BIL: 30 KV
TAPS: 4360-4260-4160-4055-3950

TANK AND FITTING: 1746 LBS.
CORE AND COIL: 3798 LBS.
FLUID-SILCONE: 1568 LBS. (196 GALS.)
TOTAL WEIGHT: 7112 LBS.
