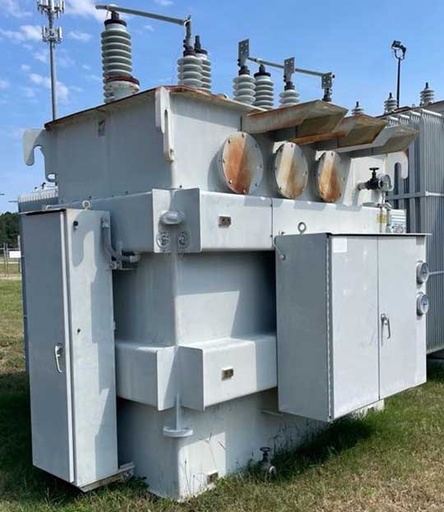

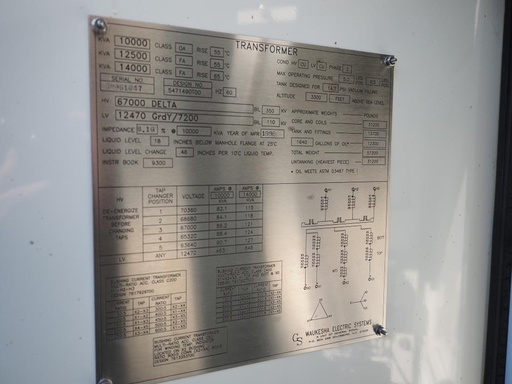

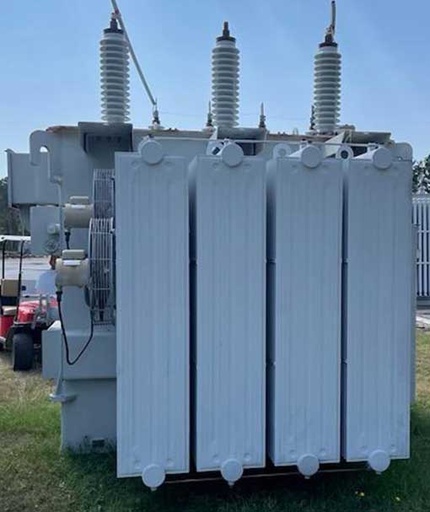

ONE (1) 10/12.5/14 MVA WAUKESHA SUBSTATION TRANSFORMER,
OA/FA/FA, 55/65 DEG C RISE, 60 HZ, 3 PH, 8.16% IMPEDANCE,
ALL COPPER WINDINGS, INSTR BOOK 9300, LIQUID LEVEL GAUGE,
LIQUID TEMP GAUGE, TOP-TOP BUSHINGS, PRESSURE GAUGE,
PRESSURE RELEASE VALVE, DRAIN & SAMPLE VALVE,
HV: 67000 DELTA BIL: 300 KV
LV: 12470GRDY/7200 BIL: 110 KV
TAPS: 70360-68680-67000-65320-63640
TOTAL WEIGHT: 57200 LBS
CORE & COILS: 31200 LBS
TANK & FITT.: 13700 LBS
LIQUID-OIL: 12300 LBS (1640 GAL)
