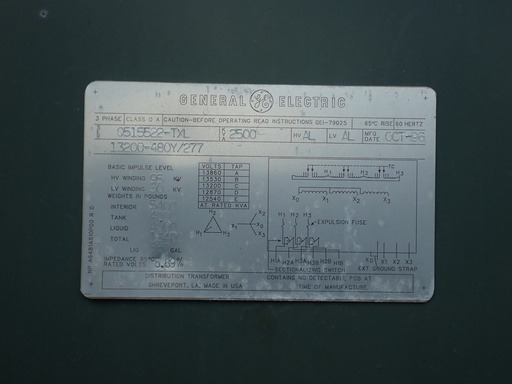

2500 KVA General Electric Pad-mount Transformer, 3 Ph, 60hz
65 Deg C Rise, Class OA, Dead Front, Loop Feed, All AL windings,
Liquid Level Gauge, Liquid Temp Gauge, Vacuum Pressure Gauge,
Tap Changer, Drain and Sample Valve, Expulsion Fuse, 5.69 %
HV: 13200 Delta 95 kV BIL
LV: 480/277 Wye 30 kV BIL
Taps: 13860-13530-13200-12870-12540
Total Weight: 13400 lbs
Core & Coils: 5400 lbs
Tank & Fittings: 4000 lbs
Liquid (Oil): 4000 lbs (560 Gal)
