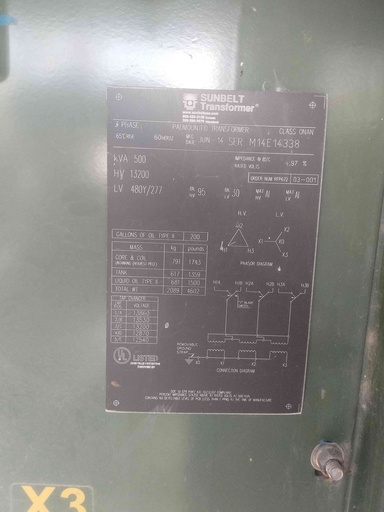

500 KVA Sunbelt Padmount Transformer, 3 Phase, 65 Deg C Rise, Class ONAN,
60 Hz, Live Front, Loop Feed, All Aluminum Windings, Liquid Level Gauge,
Vacuum Pressure Gauge, Liquid Temp Gauge, Drain and Sample Valve, Tap Changer
HV: 13200 Delta 95kV BIL
LV: 480Y/277 30kV BIL
Taps: 13860-13530-13200-12870-12540
Total Weight: 4602 lbs
Core & Coil: 1743 lbs
Tank & Fittings: 1359 lbs
Liquid (oil): 1500 lbs (200 gal)
