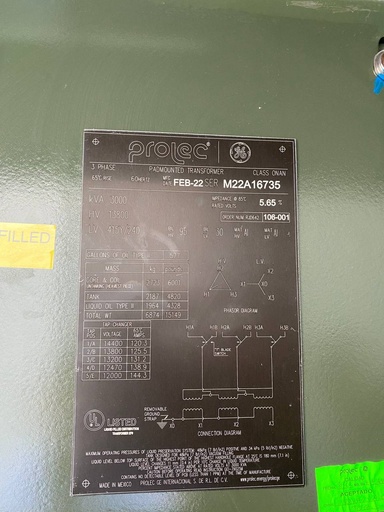

KVA: 3000 KVA
Manufacturer: GE Prolec
Phase: Three
HERTZ: 60
CLASS: ONAN
TEMPERATURE RISE: 65 °C
IMPEDANCE: 5.65 %
Primary - First: 13.8 kV
Primary - First Vector: Delta
Primary - First BIL: 95 kV
Secondary - First: 415 V
Secondary - First Vector: Wye
Secondary - First BIL: 30 kV
HV Bushing Application: Dead Front
HV Bushing Configuration: Loop Feed
TAPS: 14400-13800-13200-12470-12000
CORE & COIL WEIGHT: 6001 lb
TANK & FITTINGS WEIGHT: 4820 lb
FLUID WEIGHT: 4328 lb
FLUID GALLONS: 577 gal (US)
TOTAL WEIGHT: 15149 lb
FLUID TYPE: Mineral Oil
