3000 KVA 13200Y 480D, ERMCO, Dead Front, Loop Feed,   Our stock number: 45803

3000 KVA 13200Y 480D, ERMCO, Dead Front, Loop Feed,

Click on picture below for larger version
3000 KVA 13200Y 480D, ERMCO, Dead Front, Loop Feed,3000 KVA 13200Y 480D, ERMCO, Dead Front, Loop Feed,3000 KVA 13200Y 480D, ERMCO, Dead Front, Loop Feed,

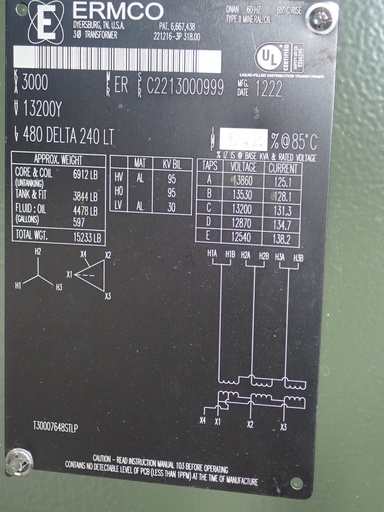

3000 KVA ERMCO Pad-Mount Transformer, 3 PH, 65 Deg C Rise, Class ONAN
All AL Windings, Dead Front, Loop Feed, Tap Changer, Liquid Temp Gauge,
Liquid Level Gauge, Drain and Sample Valve, Vacuum Pressure Gauge, IMP 6.2%

HV: 13200 Wye 95kV BIL
LV: 480 Delta 30kV BIL

TAPS: 13860-13530-13200-12870-12540

Total Weight: 15233lbs
Core and Coil: 6912lbs
Tank & FItt: 3844lbs
Liquid (oil): 4478lbs (597 gal)
