JVT-3849

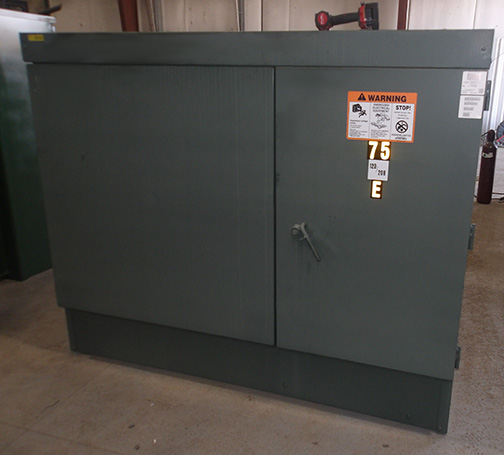

ONE (1) 75 KVA HOWARD COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS ONAN, 65 DEG. C RISE, 1.9% IMPEDANCE, DEAD FRONT,
LOOP FEED, ALUMINUM WINDINGS, LIQUID LEVEL GAUGE, PRESSURE RELIEF
VALVE, DRAIN & SAMPLE VALVE, TEMPERATURE CONTROL GAUGE, DRY WELL
FUSING, MFG. 2015, S/N 34876244515
HIGH VOLTAGE: 24940 GRDY/14400 BIL: 125 KV
LOW VOLTAGE: 208Y/120 BIL: 30 KV
TAPS: 24940-23900-22860-22290-21720
TOTAL WEIGHT: 3,253 LBS.
CORE & COILS: 660 LBS.
TANK & FIT.: 935 LBS.
OIL: 1,658 LBS. (221 GALS.)
DIMENSIONS: 65"H X 80"W X 59"D
