JVT-3895

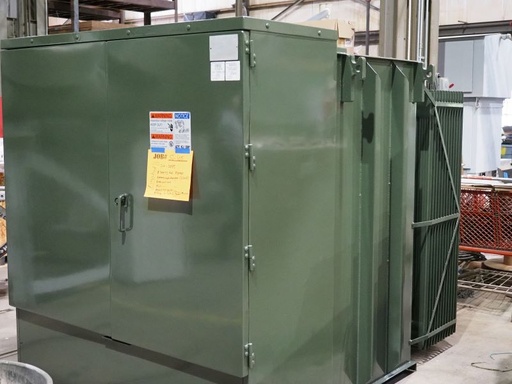

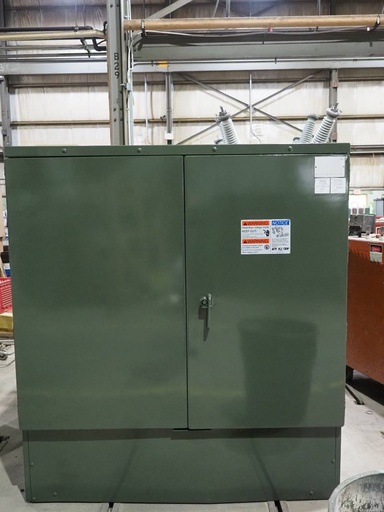

ONE (1) 3000 KVA HOWARD INDUSTRIES PADMOUNT TRANSFORMER
ONAN, 5.3% IMPEDANCE, 65 DEG C RISE, 60 HZ, 3
PHASE, AL WINDINGS, LIQUID LEVEL GAUGE, PRESSURE
RELEASE DEVICE, TEMP GAUGE, DRAIN & SAMPLE VALVE,

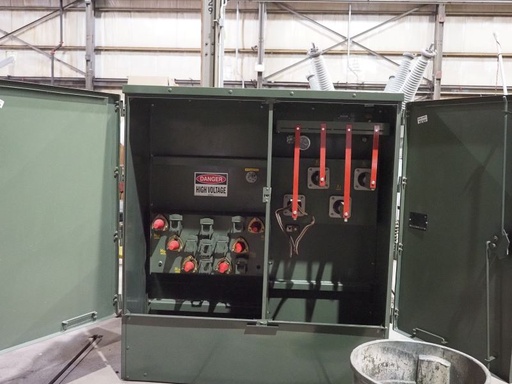

DEAD FRONT, LOOP FEED

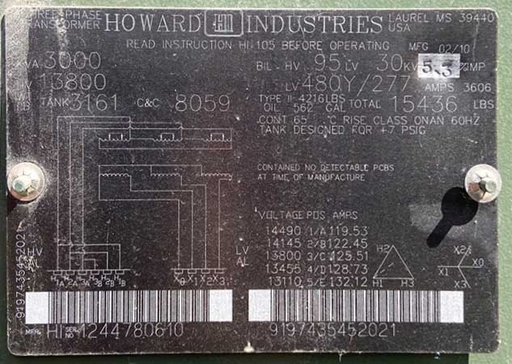

HV: 13800 DELTA BIL: 95 KV
LV: 480Y/277 BIL: 30 KV
TAPS: 14490-14145-13800-13455-13110
CORE & COILS: 8059 LBS
TANK & FITT.: 3161 LBS
OIL: 4216 LBS (562 GAL)
TOTAL WEIGHT: 15436 LBS
DIMS: 88.5"D x 69"W x 76.5"H
