300 KVA, Pri 2300 DELTA, Sec 480Y/277, LF/RF, GE PROLEC TRANSFORMER   Our stock number: 45063

300 KVA, Pri 2300 DELTA, Sec 480Y/277, LF/RF, GE PROLEC TRANSFORMER

Click on picture below for larger version
300 KVA, Pri 2300 DELTA, Sec 480Y/277, LF/RF, GE PROLEC TRANSFORMER


T-6165

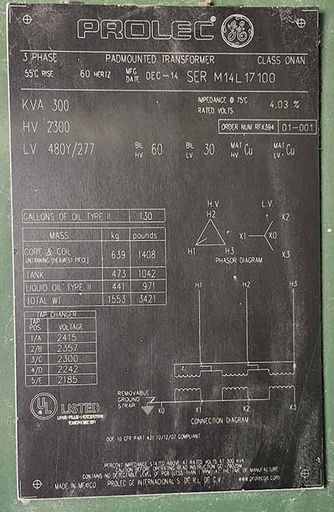

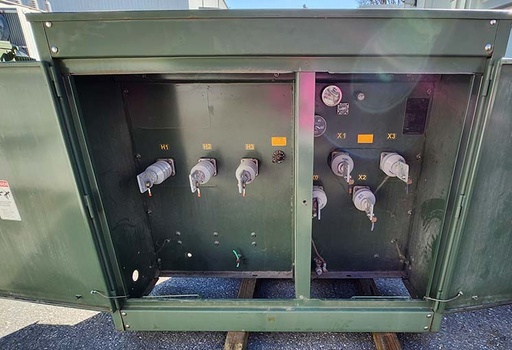

ONE (1) 300 KVA GE PROLEC PADMOUNT TRANSFORMER,
LIVE FRONT, RADIAL FEED, 3 PH, 60 HZ, 4.03% IMPEDANCE, ONAN,
55 DEG C RISE, COPPER WINDINGS, DRAIN & SAMPLE VALVE,
VACUUM PRESSURE GAUGE, LIQUID TEMP GAUGE, LIQUID LEVEL
GAUGE, PRESSURE RELEASE DEVICE, UL LISTED

HV: 2300 DELTA BIL: 60 KV
LV: 480Y/277 BIL: 30 KV

TAPS: 2415-2357-2300-2242-2185

TOTAL WEIGHT: 3421 LBS
CORE & COILS: 1408 LBS
TANK & FITT.: 1042 LBS
OIL: 971 LBS (130 GAL)

DIMS: 56"H x 66"L x 61"D
