T-6082

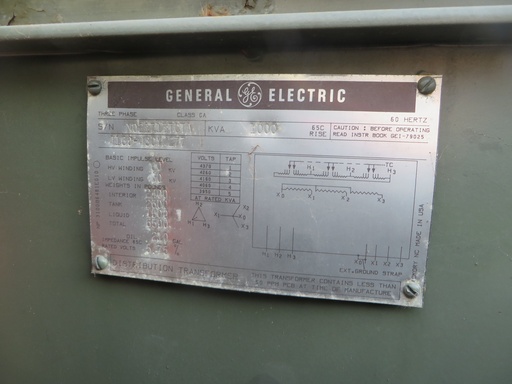

ONE (1) 1000KVA GENERAL ELECTRIC PADMOUNT TRANSFORMER
3 PHASE, CLASS OA, 60 HZ, 5.75% IMPEDANCE
65 DEG RISE, LIVE FRONT, RADIAL FEED, DRAIN & SAMPLE VALVE
LIQUID TEMP GAUGE, LIQUID LEVEL GAUGE, PRESSURE GAUGE,
PRESSURE RELIEF VALVE, SN N021713TCTA,
MCGRAW-EDISON NX FUSES, 100 AMP, 403KV MAX,
50KA SYMMETRICAL, CAT NO FAIA 100, MOUNTING CODE 1
HV: 4160D HV BIL 60KV
LV: 480Y/277 LV BIL 50KV
TAPS: 4370-4260-4160-4060-3950
CORE & COILS: 2400 LBS
TANK & FITT: 2600 LBS
FLUID OIL: 1500 LBS (210 GA)
TOTAL WEIGHT: 6500 LBS
DIMENSIONS: 55.25"H x 93"L x 84.25"D Low Voltage Bushings: 40.5" High Voltage Bushings: 32.
"
