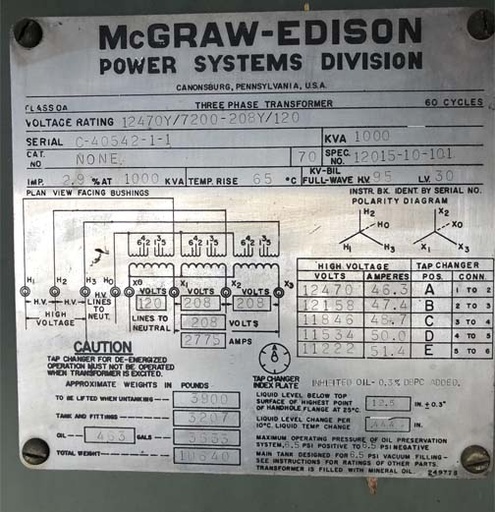

1000 KVA McGraw-Edison Pad-Mount Transformer, 3 Phase, 60 Hz
Class OA, 65 Deg C Rise, Live Front, Radial Feed, Tap Change,
Drain and Sample Valve, Pressure Relief Valve
HV: 12470/7200 WYE 95kV BIL
LV: 208/120 WYE 30kV BIL
Taps: 12470-12158-11846-11534-11222
Total Weight: 10640 lbs
Liquid (Oil): 463 Gal
DIMENSIONS: 74 1/4"H X 81 1/2"W X 55 3/4"D
