T-5825:

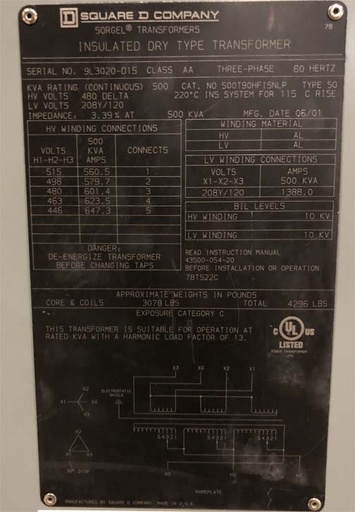

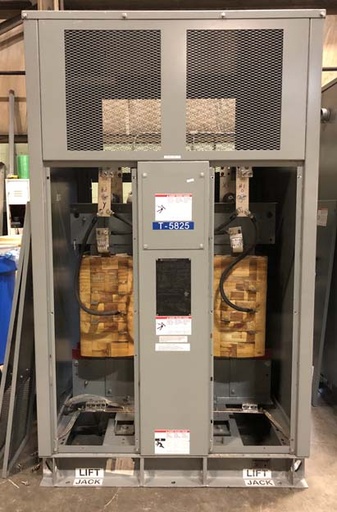

ONE (1) 500 KVA SQUARE D INDOOR DRY TYPE TRANSFORMER, 3 PHASE, 60 HERTZ, CLASS
AA, 220 DEG. C INSULATION SYSTEM FOR 115 DEG. C RISE, 3.39% IMPEDANCE,
ALUMINUM WINDINGS, EXPOSURE CATEGORY C, INST. BOOK 43500-054-20, S/N
9L3020-D15, MFG. 2001, UL LISTED
HIGH VOLTAGE: 480 DELTA BIL: 10 KV
LOW VOLTAGE: 208Y/120 BIL: 10 KV
TAPS: 515-498-480-463-446
TOTAL WEIGHT: 4,296 LBS.
CORE & COILS: 3,078 LBS.
DIMENSIONS: 95"H X 56"W X 54"D
