T-5657

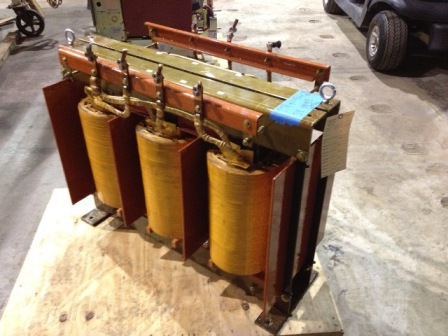

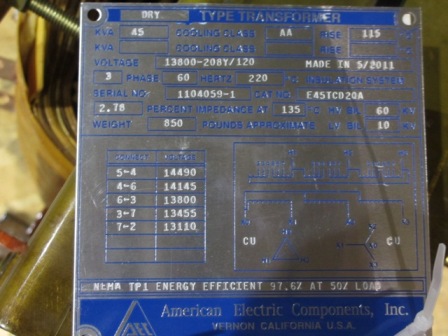

ONE (1) 45 KVA AEC CONTROL POWER TRANSFORMER, 3 PHASE, 60 HERTZ, CLASS AA,
2.78% IMPEDANCE, COPPER WINDINGS, CORE & COIL ONLY, MFG. 2011,
S/N 1104059-1

HIGH VOLTAGE: 13800 DELTA BIL: 60 KV
LOW VOLTAGE: 208Y/120 BIL: 10 KV
TAPS: 14490-14145-13800-13455-13110

TOTAL WEIGHT: 850 LBS.
