T-5849:

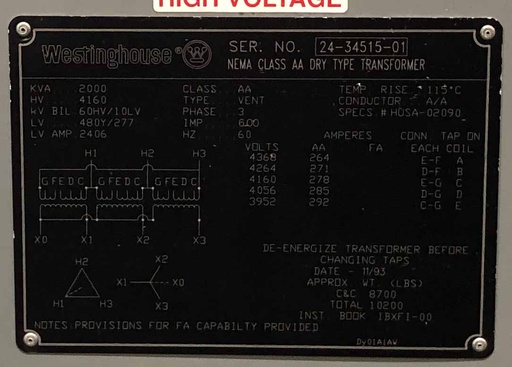

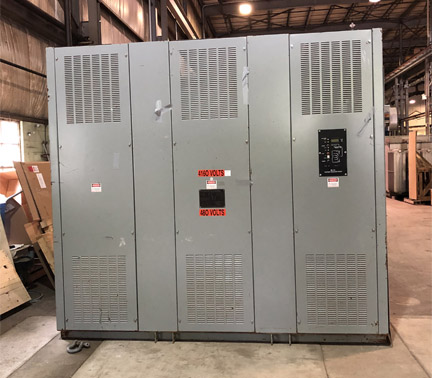

ONE (1) 2000 KVA WESTINGHOUSE INDOOR DRY TYPE TRANSFORMER, 3 PHASE, 60 HERTZ,
CLASS AA, 115 DEG. C RISE, 6.0% IMPEDANCE, ALUMINUM WINDINGS QUALITROL
ELECTRONIC TEMPERATURE MONITOR, INST. BOOK IBXFI-00, S/N 24-34515-01,
MFG. 11/1993, SPECS #HUSA-02090
HIGH VOLTAGE: 4160 DELTA BIL: 60 KV
LOW VOLTAGE: 480Y/277 BIL: 10 KV
TAPS: 4368-4264-4160-4056-3952
TOTAL WEIGHT: 10,200 LBS.
CORE & COIL: 8,700 LBS.
DIMENSIONS: 102"H X 112"L X 66"W

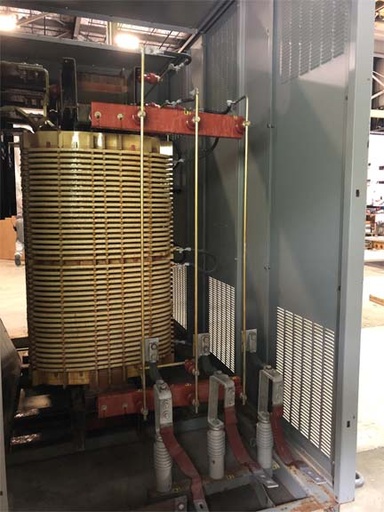

CORE & COIL: 65"H X 67"L X 38"W
