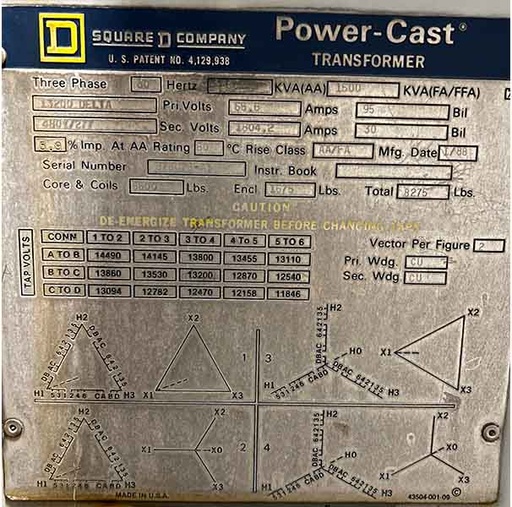

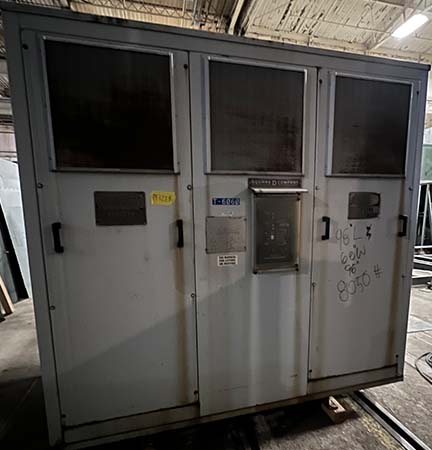

T-6061
ONE (1) 1000/1500 KVA SQUARE D DRY TYPE TRANSFORMER
3 PHASE, 60 HZ, NEMA 3R, COPPER WINDINGS
CLASS AA/FA/FFA, 80 DEG. C RISE, 5.81% IMP, MFG. 1994,
INSULATION CLASS 150, INST. MANUAL 43500-054-01
CAST COIL, SERIAL NO. 936177-A1
HIGH VOLTAGE: 13200 DELTA, BIL 125 KV
LOW VOLTAGE: 480Y/277, BIL 30 KV
TAPS: 13860-13530-13200-12870-12540
TOTAL WEIGHT: 8,050 LBS
CORE & COILS: 6,800 LBS
ENCL.: 1,250 LBS
CORE & COIL: 54"H X 70"W X 24"D
DIMENSIONS: 96"H x 98"W x 60"D
