CPT-051:

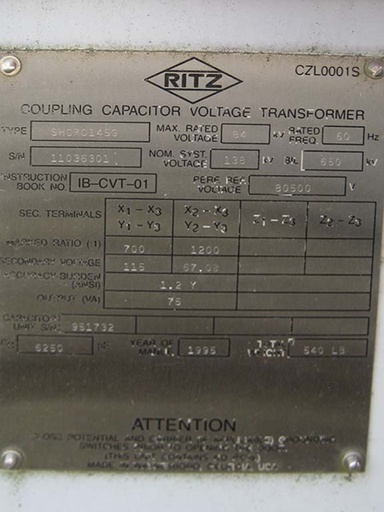

ONE (1) RITZ COUPLING CAPACITOR VOLTAGE TRANSFORMER
TYPE SHCR0145G
84 KV MAX.
138 KV NOM. SYSTEM VOLTAGE
115/67.08 SECONDARY VOLTAGE
60 HERTZ
650 KV BIL
80500 PERF. REF. VOLTAGE
700:1 X1-X3 & Y1-Y3
1200:1 X2-X3 & Y2-Y3
1.2Y ACCURACY BURDEN
75 VA OUTPUT
INST. BOOK IB-CVT-01
MFG. 1995
540 LBS.
S/N 11036301
