CPT-102ABC:

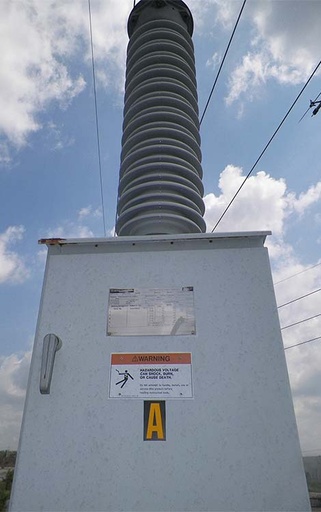

THREE (3) ABB COUPLING CAPACITOR VOLTAGE TRANSFORMERS
TYPE PCA-3
STYLE 138A8R2NNPCN
138 KV L-L NOMINAL
84 KV L-G MAX.
60 HERTZ
615 LBS.
INST. BOOK 39-621-11
DIAGRAM 719809
STACK CAPACITANCE .005 MFG
-40 DEG. C TO +40 DEG. C OPERATING TEMPERATURE
THERMAL BURDEN X+Y+W WINDINGS - 300 VA
THERMAL BURDEN X OR Y WINDINGS - 300 VA
INSULATION LEVEL 1 MIN. DRY 320 KV
650 KV BIL
STACKING ARRANGEMENT BOTTOM TO TOP
CAPACITANCE .0054
SECONDARY WINDINGS -
WINDING ACCURACY CLASS BURDEN RATIO
X1-X3 1.2% 200 VA 693:1
X2-X3 1.2% 200 VA 1200:1
Y1-Y3 1.2% 100 VA 693:1
Y2-Y3 1.2$ 100 VA 1200:1
Z1-Z3
Z2-Z3
CARRIER ACCESSORIES 30 TO 500 KHZ NOT INCLUDED
MAX. TOTAL BURDEN X+Y+Z WINDINGS TO MAINTAIN ACCURACY 200 VA
