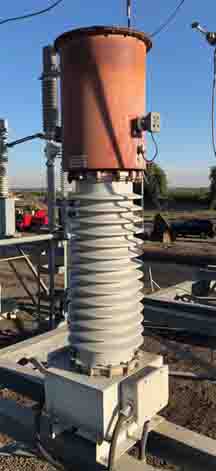

CPT-240AB

TWO (2) SQUARE D HERMATICALLY SEALED SINGLE PHASED METERING UNIT
TYPE N2-550
CAT.#N2-550-115-151S-1
550 KV BIL
60 HERTZ
115 KV
51 GALS. OF OIL
1,420 LBS. TOTAL

INST. BOOK 63107-099-01
150/75:5 AMPS
1000/600:1 RATIO
69 KV PRIMARY
69/115 V SECONDARY
0.3% ZZ BURDEN
0.3% B 2.0 ACCURACY CLASS
6000 VA THERMAL RATING

CPT-240A 98218
CPT-240B 98219
