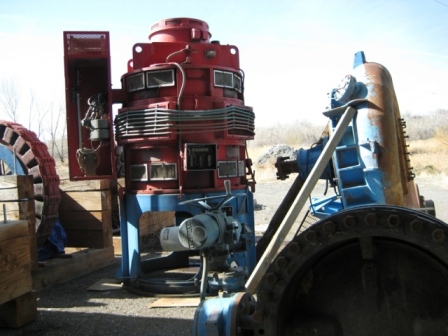

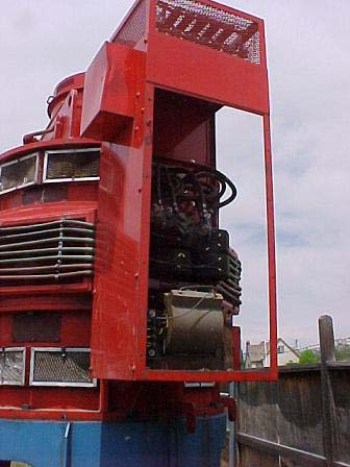

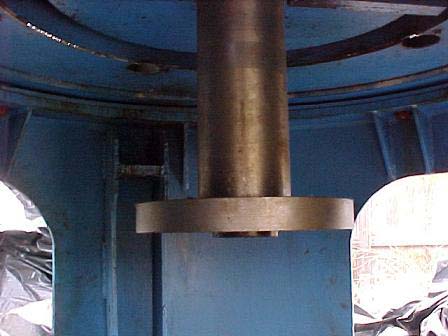

1600 KW, 234 FT Hd., 2300 V/3/60 HZ, 1983, HYDRO WEST, 900 RPM:-1   Our stock number: 31836

1600 KW, 234 FT Hd., 2300 V/3/60 HZ, 1983, HYDRO WEST, 900 RPM:-1

Click on picture below for larger version
1600 KW, 234 FT Hd., 2300 V/3/60 HZ, 1983, HYDRO WEST, 900 RPM:-11600 KW, 234 FT Hd., 2300 V/3/60 HZ, 1983, HYDRO WEST, 900 RPM:-11600 KW, 234 FT Hd., 2300 V/3/60 HZ, 1983, HYDRO WEST, 900 RPM:-1



STOCK# 12103AT
HYDRO TURBINE:
MANUFACTURER: HYDRO WEST
TYPE: VERTICAL FRANCIS
DESIGN HEAD: 234 FT
FLOW: 120 CFS
RATING: 2800 HP
INLET PRESSURE: 86 PSI
OUTLET PRESSURE: 6.2 PSI

GENERATOR:
MANUFACTURER: IDEAL
FRAME: V21320-17
RATING: 1600 KW, 1778 KVA
RPM: 900 RPM
VOLTAGE: 2300 V/ 3 PHASE, 60 HZ
PF: 0.9
YEAR BUILT: 1983

UNIT HAS BEEN DISMANTLED AND IS IN STORAGE.

SCOPE OF SUPPLY: TURBINE AND GENERATOR, NO CONTROLS, NO SPARES,
NO PENSTOCK
