(GENERATOR AND STEAM GENERATOR MAY BE BOUGHT SEPARATELY)
STEAM GENERATOR
Manufacturer .......... Alstom
Type................... Once through, Supercritical w/ reheater
MCR.....................4,629,000 #/hr, 3790 PSI at 1050/1105 Deg. F
Fuel....................Bituminous coal only or a combination of
bituminous coal and petcoke (up
to a 70%/30% blend)

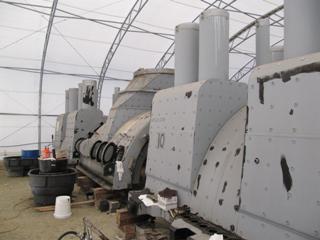

STEAM TURBINE
Manufacturer........... General Electric
Rating................. 615045 KW
Stages................. 22 Stages
HP Inlet.............. 3515 PSI @ 1050 Degr. F
Exhaust Pressure....... 3.45" HgA

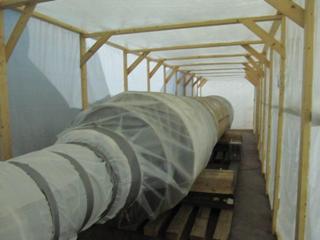

GENERATOR
Manufacturer........... General Electric
Rating................. 750000 KVA
Cycles................. 60 HZ
Power Factor........... 0.9 P.F.
ADDITIONAL SCOPE OF SUPPLY:
Plant design heat rate with this power block is approximately
8725 BTU/kw-hr with turbine control valves wide open (VWO)
Design documentation of the power block (drawings, specifications,
calculations, 3D modeling)

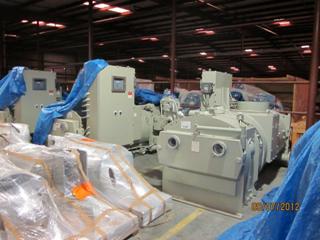

Turbine Generator Auxiliary Skids
Steam Generator Engineering and Supply
Steam Surface Condenser Materials Only -Stainless Steel tube blank
plates and wide band coils for tubing fabrication (in storage)
Feedwater Heater Materials Only - Stainless Steel tube strip coils
and carbon steel ingots for forgings (in storage)
Condensate Pumps
Boiler Feed Pumps
BFP Booster Pumps
Startup Boiler Feed Pump (Electric 25%)
Critical Piping

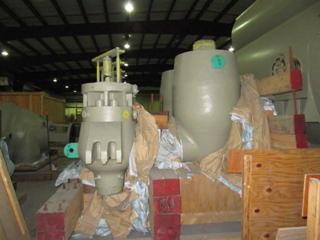

High Pressure Valves #1
High Pressure Valves #2
Severe Service Control Valves
More details can be provided after receiving project and funding
details.
