(GENERATOR AND STEAM GENERATOR MAY BE BOUGHT SEPARATELY)

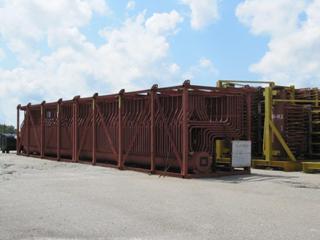

STEAM GENERATOR
Manufacturer..................Alstom
Type..........................Once through, Supercritical w/ reheat
MCR...........................4,629,000 #/hr, 3790 PSI at 1055/1105 Deg. F
Fuel..........................Bituminous coal only or a combination of
bituminous coal and petcoke (up
to a 70%/30% blend)

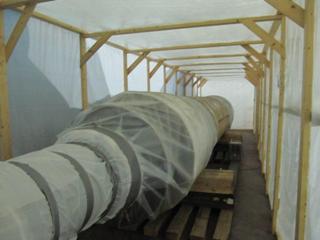

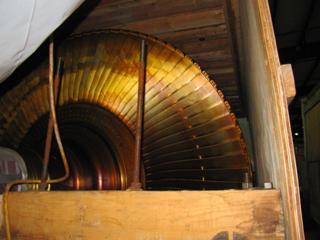

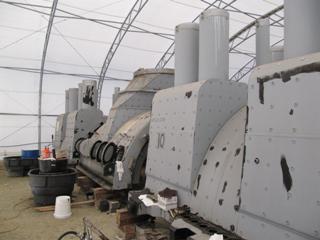

STEAM TURBINE
Manufacturer..................General Electric
Rating........................562000 KW (after 50Hz modification)
Stages........................22 stages
HP Inlet......................3500 PSI @ 1050 Deg F
Exhaust Pressure..............3.0" HgA

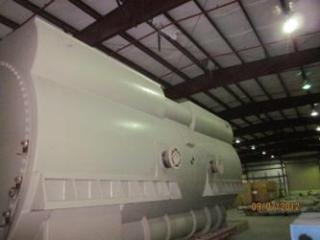

GENERATOR
Manufacturer..................General Electric
Cycles........................50 HZ (after rotor changeout)
Cooling.......................Hydrogen and Stator Water cooling
ADDITIONAL SCOPE OF SUPPLY:
Design documentation of the 60Hz power block (drawings,specifications,
calculations, 3D modeling)

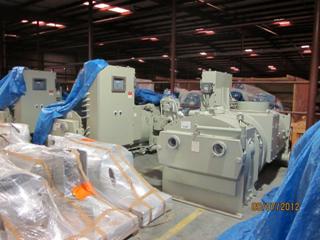

Turbine Generator Auxiliary Skids
Steam Generator Engineering and Supply
Steam Surface Condenser Materials Only - Stainless Steel tube blank plates and
wide band coils for tubing fabrication (in storage)
Feedwater Heater Materials Only - Stainless Steel tube strip coils and carbon
steel ingots for forgings (in storage)
3 - Condensate Pumps
2 - Boiler Feed Pumps
2 - BFP Booster Pumps
1 - 10% Startup Boiler Feed Pump (Electric)

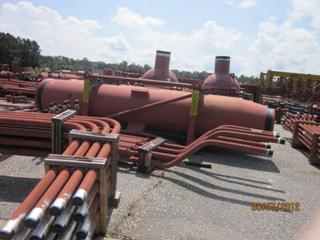

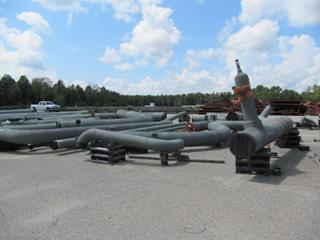

Critical Piping
High Pressure Valves #1
High Pressure Valves #2
Severe Service Control Valves
