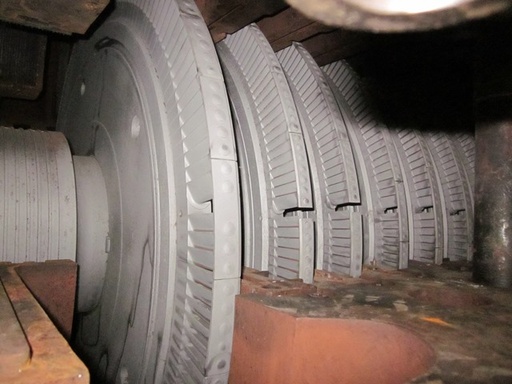

STEAM TURBINE:
Manufacturer:..... GENERAL ELECTRIC
Rating:............5000 KW
Inlet:.............850 PSIG @ 825 DEG F
Exhaust:...........1.5 "HG
Extraction:........5 PSI
Type:..............Condensing
Control System:....MHC
GENERATOR:
Manufacturer:......GENERAL ELECTRIC
Rating:............6250 KVA
Output:............13800 VOLT
Frequency:.........3 PH, 60 HZ
Current:...........261 AMPS
Power Factor:......0.85
Field Voltage:.....125 VOLTS
SCOPE OF SUPPLY:
Condenser
Lube Oil Tank & Pumps
Turbine Generator Sole Plate
Miscellaneous Steam, Lube Oil and Cooling Water Piping
The generator excitation system and switchgear are not included in the scope
of supply.
A digital turbine control system can be provided and installed at an
additional cost.
