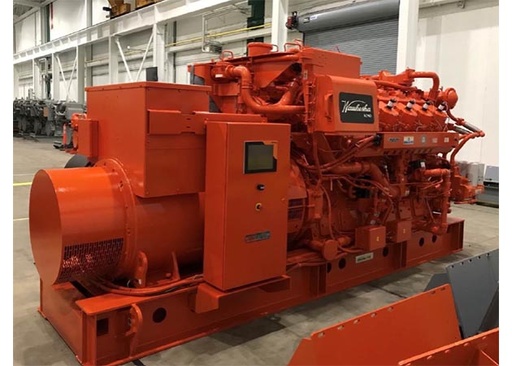

ENGINE:
Manufacturer:.............Waukesha
Model:....................VHP7104GSI-S5
Cylinders:................V12
Engine Power:.............1900 BHP
Fuel:.....................Natural Gas
Displacement:.............7040 cu in.
Compression Ratio:........9.7:1
Ignition System:..........ESM2
Engine Sound Level:.......102.7 dBA
Cooling System:...........JW, IC + OC
Emissions Control:........Empac 3-way catalyst
Radiator:.................Remote (Not Included)
Starting System:..........Electric (24V)
GENERATOR:
Manufacturer:.............Leroy-Somer
Frame:....................LS661-06LV
Rating:...................1688 KVA
Output:...................1350 kWe
..........................1148 kWe @ 0.85 pf
Duty:.....................Continuous
Output Current:...........2029 A
Output Voltage:...........480 VAC
Insulation:...............H
Speed:....................1200 RPM
Frequency:................3 pH 60 HZ
Phase Rotation:...........T1-T2-T3
Connection:...............Star
Max Inlet Air Temp:.......100 deg F
SCOPE OF SUPPLY INCLUDES:
Exhaust System SS Silencer
Control System - ECP8000 Panel w/ ESM 2
24V Battery Charging System Alternator
The Remote Radiator System is NOT Included in the Scope of Supply but can be
purchased separately.
The generator can be re-connected for 50 HZ operation @ 1235 KW 480 VAC 3 PH,
1000 RPM.
There are four (4) unused (surplus/new) gensets available for immediate
shipment, subject to prior sale.
Delivery: EXW - loaded on customer truck
Terms: Progressive payment:
50 % - with PO
30 % - Net 30 days
20 % - Readiness to be ship
