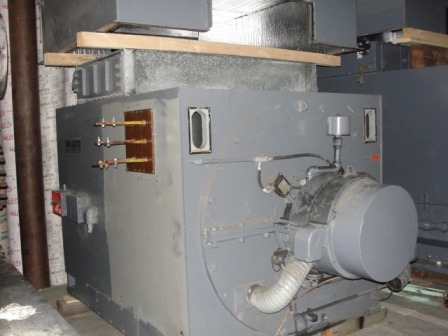

Stock# 12206AT Mach# 39624
Manufacturer: Hyundai Ideal
Rating: 8750 kva
KW: 7000 kw
Serial number: 340122
Frame: 21320-35
Voltage: 4160 v, 3 phase, 60 hz
PF: 0.8
Type: TEWAC, brushless
Amps: 1214
Rotation: CCW from drive end
Type: SAB
Exciter: 35 kw, 250 dc volts, 140 dc amps, 125 v dc .
Insulation: Class F
Year Manufactured: 1987, rewound stator 2006.
Center line height: 35.125"
Total weight: 40,500 lbs
Shipping size: 133.5" L x 7.5" W x 92" H
Scope of supply:
Generator with exciter and air to water cooler
Generator sole plates
Generator terminal box
Generator protection and control panel
Generator Breaker 2000 amps BBC, 4160 v.
