CB-18731

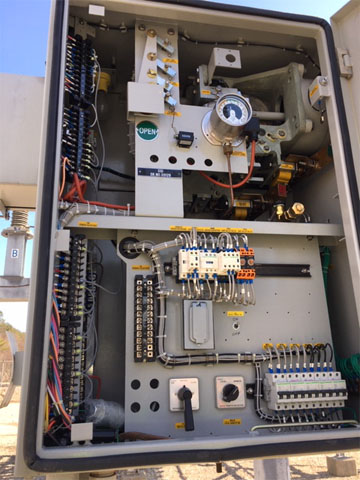

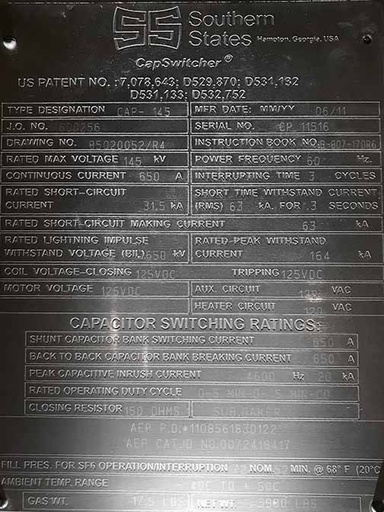

650 AMP SOUTHERN STATES SF6 CIRCUIT SWITCHER
TYPE CAP-145
138 NOM
145 KV
60 HERTZ
3 CYCLE INTERRUPT
31.5 KA SHORT CIRCUIT
63 KA FOR .3 SECONDS
650 KV BIL
164 KA RATED PEAK WITHSTAND CURRENT
125 VDC CLOSE & TRIP
120 VAC HEATER & AUXILIARY MOTOR
17.5 LBS. OF GAS
5900 LBS.
72 PSIG
52 PSIG MINIMUM
650 AMP SHUNT CAPACITOR BANK SWITCHING CURRENT
650 AMP BACK TO BACK CAPACITOR BANK BREAKING CURRENT
PEAK CAPACITIVE INRUSH CURRENT - 4600 HZ - 20 KA
