630 Amp, G&W, No. PRAM44-376M-40PI, 15500 V., 2023, SF6, 4-Way; Unused   Our stock number: 45556

630 Amp, G&W, No. PRAM44-376M-40PI, 15500 V., 2023, SF6, 4-Way; Unused

Click on picture below for larger version
630 Amp, G&W, No. PRAM44-376M-40PI, 15500 V., 2023, SF6, 4-Way; Unused630 Amp, G&W, No. PRAM44-376M-40PI, 15500 V., 2023, SF6, 4-Way; Unused

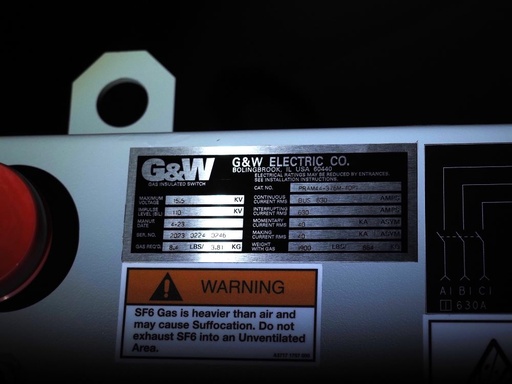

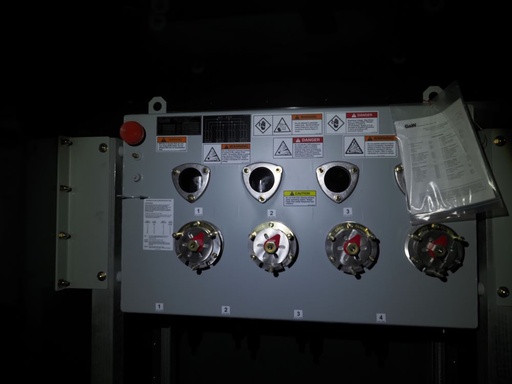

One (1) 630 Amp G&W 4-Way SF6 Gas Insulated Switch
13.8KV NOM
15.5kV
Cat. No: PRAM44-376M-40PI
110kV BIL
40kA Mom Short Asym
40kA Making Current Asym
34kV One-Minute Withstand; 60hz AC
53kV 15-Minute Withstand; DC
Gas Required: 8.4lbs
2 in 2 out

Weight: 1600 lbs
