CB-18314
One (1) 600 Amp S&C PMH-9 Padmount Switch

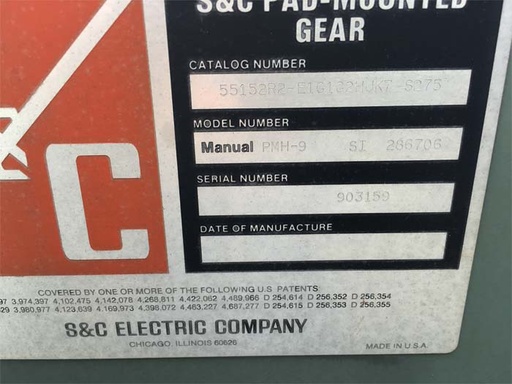

Manual - PMH-9 SI 286706
14.4 KV Nominal
17 KV Max. Design
95 KV BIL
Serial # 903159
Short Circuit:
14 KA RMS
350 MVA Three Phase SYM
Fuses-Type SML 20
Max rating 200E or 200K
Mini-Rupter Switches:
600 Continuous Amps
22.4 KA RMS Sym
14 KA RMS
35 KA PEAK
Weight:1625
Dimensions: 67"W X 60-3/4"D X 50.5"H
