CB-18114

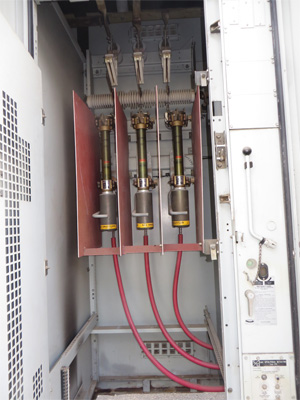

ONE (1) 600 AMP S&C METAL ENCLOSED SWITCH
OUTDOOR NEMA 3R WITH INCOMING AND OUTGOING SECTIONS

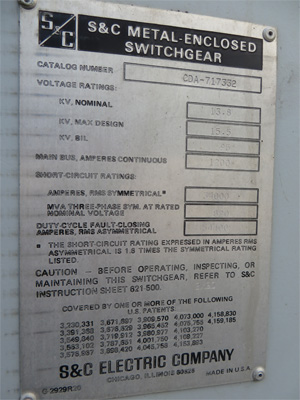

CAT.#CDA-717332
13.8 KV NOMINAL
15.5 KV MAX. DESIGN
95 KV BIL
1200 AMP CONTINUOUS MAIN BUS
34 KA RMS SYMMETRICAL SHORT CIRCUIT
820 MVA SYM. AT NOMINAL VOLTAGE
54.4 KA DUTY CYCLE FAULT CLOSING RMS ASSYMMETRICAL
MS2 SWITCH OPERATOR CAT.#38744-DW (MANUAL & AUTOMATIC)
120 VAC
400 E FUSES
50 AMP FUSE LINKS
2 X 100:5 CT'S
MFG. 02/1990
52 OPERATIONS
COMING IN BOTTOM LEFT AND OUT RIGHT SIDE
INST. BOOK 621-500
