CB-19446

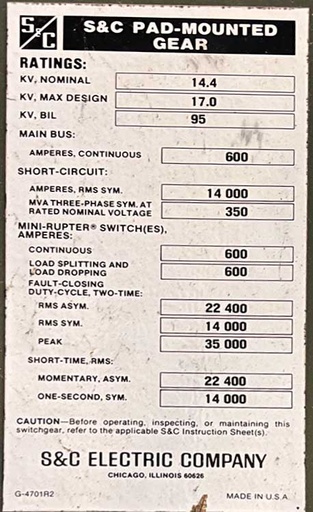

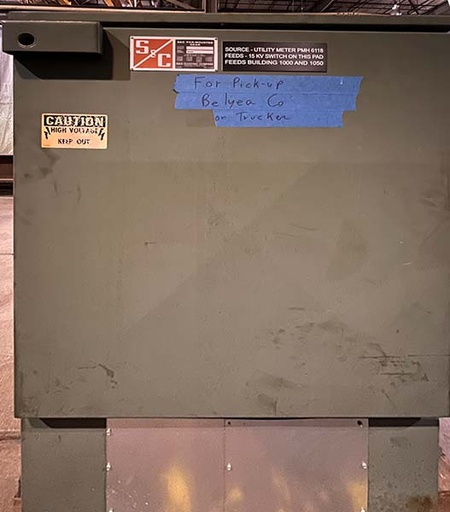

One (1) 600 Amp S & C Pad-Mounted Switch
Model PMH-3
14.4 KV Nominal
17.0 KV Max
95.0 KV BIL
Short-Circuit:
14 KA, RMS Sym.
350 MVA Nominal at 3-Phase
Mini-Rupter Switch(es):
600 A Continuous
600 A Load Splitting/Dropping
Fault Closing Duty-Cycle, Two-Time:
22.4 KA RMS ASYM.
14.0 KA RMS SYM.
35 KA Peak
Short Time:
22.4 KA MOM.
14.0 KA One-second
