CB-19266:

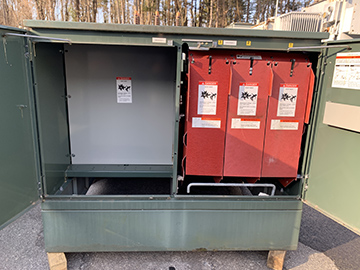

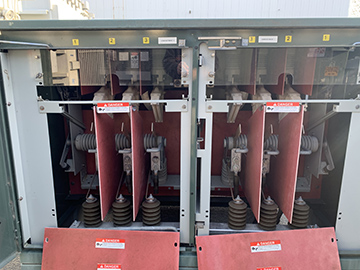

ONE (1) 600 AMP S & C PMH-6 PADMOUNT SWITCH

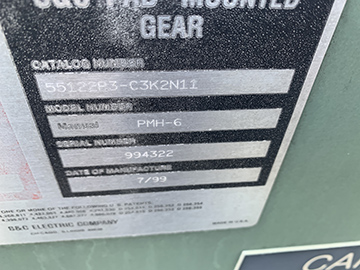

CAT. #55122R3-C3K2N11
14400 V NOMINAL
17 KV MAX. DESIGN
95 KV BIL
600 AMP BUS
SHORT-CIRCUIT:
14 KA RMS SYM
350 MVA THREE PHASE SYM
FUSE RATINGS - TYPE SML-20 (WITH UNI-RUPTER)
200E OR 200K
200 LOAD SPLITTING AND LOAD DROPPING
22.4 KA/13 KA DUTY CYCLE FAULT CLOSING CAPABILITY, ONE-TIME/TWO-TIME
MINI-RUPTER SWITCHES
600 AMPS
600 LOAD SPLITTING AND LOAD DROPPING
FAULT CLOSING DUTY CYCLE, TWO-TIME:
22.4 KA RMS ASYM
14 KA RMS SYM
35 KA PEAK
SHORT-TIME RMS
22.4 MOMENTARY, ASYM
14 KA ONE-SECOND SYM
MFG. 07/1999
S/N 994322
