CB-19028:

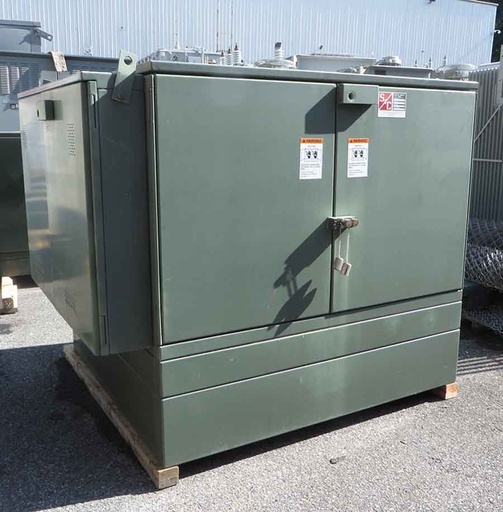

ONE (1) 600 AMP S & C SOURCE TRANSFER PMH-9 PADMOUNT SWITCH
14.4 KV NOMINAL
17 KV MAX. DESIGN
95 KV BIL
60 HERTZ
Electrically Operated
S/N 023014
CAT. #56252R1-C10C5C9K9Y2Y4Y8
SHORT CIRCUIT -
14 KA RMS SYM
350 MVA THREE PHASE SYM
SML-20 FUSE TYPE (WITH UNI-RUPTER)
200E OR 200K MAX.
200 AMP LOAD SPLITTING AND LOAD DROPPING
22.4 KA/13 KA DUTY CYCLE FAULT CLOSING CAPABILITY (ONE TIME/TWO TIME)
MINI-RUPTER SWITCHES
600 AMP CONTINUOUS
600 AMP LOAD SPLITTING & LOAD DROPPING
FAULT CLOSING DUTY CYCLE, TWO TIME
22.4 KA RMS ASYM
14 KA RMS SYM
35 KA PEAK
SHORT-TIME, RMS:
22.4 KA MOMENTARY, ASYM
14 KA ONE-SECOND, SYM
MFG. 05/2002
62.5"H X 76"W X 61"D
