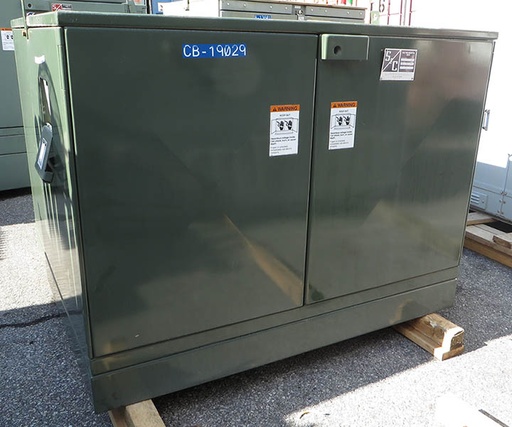

CB-19029:
ONE (1) 600 AMP S & C PMH-11 PADMOUNT SWITCH
14.4 KV NOMINAL
17 KV MAX. DESIGN
95 KV BIL
60 HERTZ
S/N 952532
CAT. #55362R-A10K19M2N6
SHORT CIRCUIT -
12.5 KA RMS SYM
310 MVA THREE PHASE SYM
SML-4Z FUSE TYPE (WITH UNI-RUPTER)
200E
200 AMP LOAD SPLITTING AND LOAD DROPPING
20 KA/13 KA DUTY CYCLE FAULT CLOSING CAPABILITY (ONE TIME/TWO TIME)
MINI-RUPTER SWITCHES
600 AMP CONTINUOUS
600 AMP LOAD SPLITTING & LOAD DROPPING
FAULT CLOSING DUTY CYCLE, TWO TIME
22.4 KA RMS ASYM
14 KA RMS SYM
35 KA PEAK
SHORT-TIME, RMS:
22.4 KA MOMENTARY, ASYM
14 KA ONE-SECOND, SYM
