CB-19474

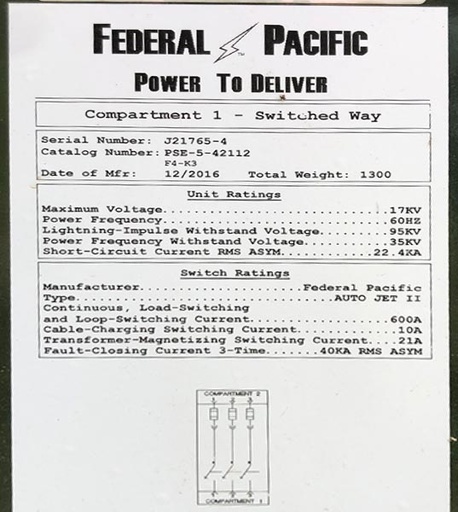

ONE (1) 600 AMP FEDERAL PACIFIC PADMOUNTED SWITCH, UNUSED
14400 VOLT NOMINAL
17000 VOLT MAX. DESIGN
60HZ
95 KV BIL
35 KV POWER FREQ. WITHSTAND VOLTAGE
22.4 KA RMS SYM. SHORT CIRCUIT CURRENT
SWITCH RATINGS:
TYPE: AUTO JET II
600 AMP CONTINUOUS, LOAD-SWITCHING & LOOP-SWITCHING CURRENT
10 AMP CABLE CHARGING SWITCHING CURRENT
21 AMP TRANSFORMER-MAGNETIZING SWITCHING CURRENT
40KA RMS ASYM FAULT CLOSING CURRENT 3-TIME
FUSES -
(3) EATON DBU17-25E
200A CONTINUOUS CURRENT
STYLE: 5981C76G07
14KA RMS SYM
17.1 KV MAX
CAT. PSE-5-42112-F4-K3
WEIGHT: 1300 LBS
DIMENSIONS: 44" H X 72.5" W X 41.5" D
