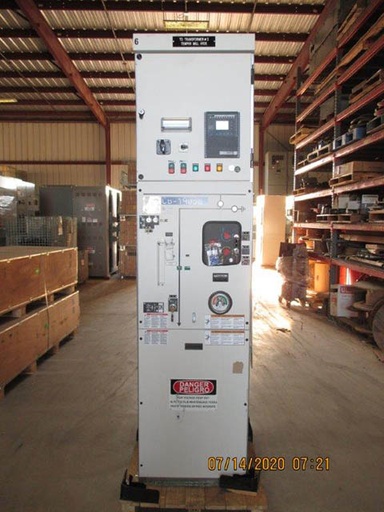

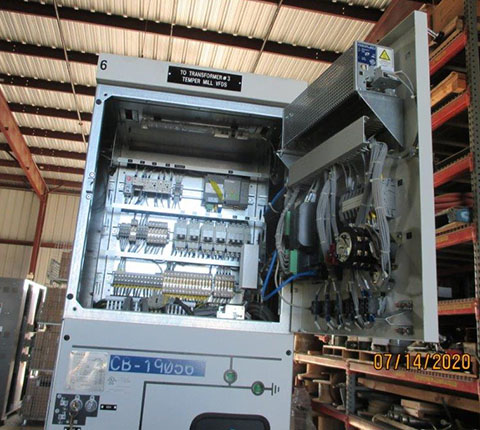

1200 Amp, SCHNEIDER, CBGS-0, 38 KV, 2017, SF6 INSULATED   Our stock number: 43986

1200 Amp, SCHNEIDER, CBGS-0, 38 KV, 2017, SF6 INSULATED

Click on picture below for larger version
1200 Amp, SCHNEIDER, CBGS-0, 38 KV, 2017, SF6 INSULATED1200 Amp, SCHNEIDER, CBGS-0, 38 KV, 2017, SF6 INSULATED1200 Amp, SCHNEIDER, CBGS-0, 38 KV, 2017, SF6 INSULATED

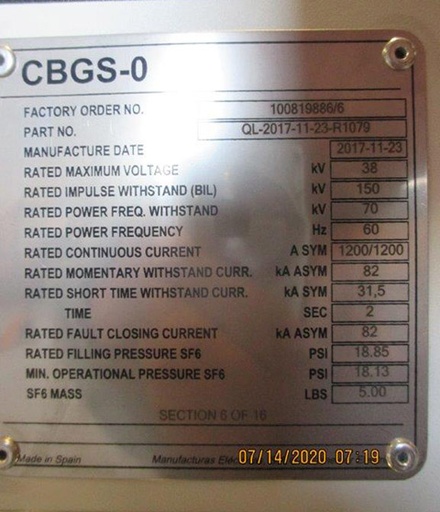

CB-19056:

ONE (1) 1200 AMP SCHNEIDER ELECTRIC GAS INSULATED CIRCUIT BREAKER
TYPE CBGS-0
34.5 KN NOM
38 KV
150 KV BIL
70 KV FREQUENCY WITHSTAND
60 HERTZ
82 KA ASYM MOMENTARY WITHSTAND
31 KA SYM SHORT TIME WITHSTAND
2 SEC. SHORT TIME
82 KA ASYM FAULT CLOSING
18.85 PSI SF6 FILLING PRESSURE
18.13 PSI MIN. SF6 OPERATING PRESSURE
5 LBS. SF6 MASS
