CB-17258

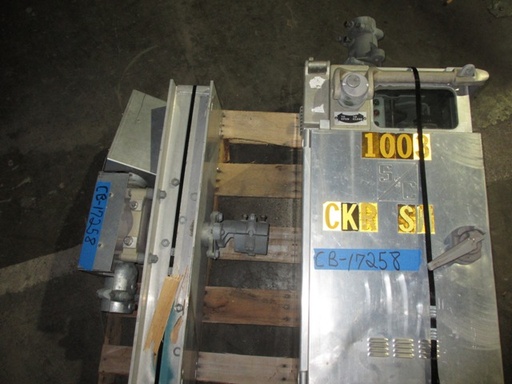

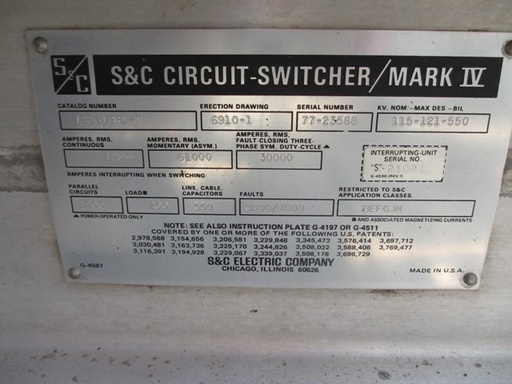

ONE (1) 1200 AMP S&C MARK IV CIRCUIT SWITCHER
115 KV NOM.
121 KV MAX.
61 KA MOM. (ASYM)
30 KA RMS, FAULT CLOSING, 3 PHASE SYM DUTY CYCLE
550 KV BIL
RESTRICTED TO S&C APPLICATION CLASSES: BEFGHJKLMNPR
S/N 78-23973
CAT. #182328-T

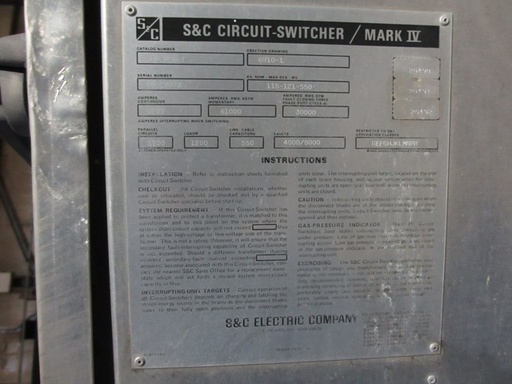

INSTRUCTION PLATE #G-4197 OR G-4511
ERECTION DRAWING 6910-1
AMPERES INTERRUPTING WHEN SWITCHING INFO
1200 AMPS PARALLEL CIRCUIT
1200 AMPS LOAD
550 AMPS LINE CAPABLE CAPACITORS
4000/8000 AMP FAULTS
S&C SWITCH OPERATOR INFO
TYPE CS-1A
STYLE HEAVY DUTY
OPERATOR VOLTAGE 125 VDC
S/N 178202
CAT. #38706R2-BHPMNV
