1200 Amp, S&C, No. MARK III, 115000 V., 61 KA MOM., 550 KV BIL, CIRCUIT SWITCHER   Our stock number: 37108

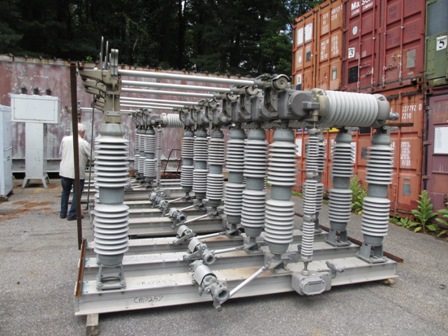

1200 Amp, S&C, No. MARK III, 115000 V., 61 KA MOM., 550 KV BIL, CIRCUIT SWITCHER

Click on picture below for larger version
1200 Amp, S&C, No. MARK III, 115000 V., 61 KA MOM., 550 KV BIL, CIRCUIT SWITCHER1200 Amp, S&C, No. MARK III, 115000 V., 61 KA MOM., 550 KV BIL, CIRCUIT SWITCHER1200 Amp, S&C, No. MARK III, 115000 V., 61 KA MOM., 550 KV BIL, CIRCUIT SWITCHER1200 Amp, S&C, No. MARK III, 115000 V., 61 KA MOM., 550 KV BIL, CIRCUIT SWITCHER

CB-17257

ONE (1) 1200 AMP S&C MARK III CIRCUIT SWITCHER
115 KV NOM.
121 KV MAX.
61 KA MOM. (ASYM)
30 KA RMS, FAULT CLOSING, 3 PHASE SYM DUTY CYCLE
550 KV BIL
RESTRICTED TO S&C APPLICATION CLASSES; BEFGJM
S/N 75-11455
CAT. #178318-T
INSTRUCTION PLATE #G-4196 OR G-4197
ERECTION DRAWING
AMPERES INTERRUPTING WHEN SWITCHING INFO
1200 AMPS PARALLEL CIRCUIT
1200 AMPS LOAD
550 AMPS LINE CAPABLE CAPACITORS
3000/6000 AMP FAULTS
S&C SWITCH OPERATOR INFO
TYPE MOTO-MECH
STYLE HEAVY DUTY
OPERATOR VOLTAGE 125 VDC
S/N 75037
CAT. #38706R1-BNMNV
