BELYEA STOCK #'s: CB-16596A-97AB, CB-16597, CB-16596

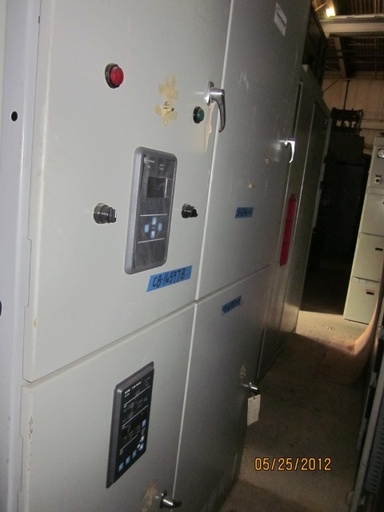

(1EA) LINEUP OF NEMA-1 CUTLER HAMMER VACUUM SWITCHGEAR IN AN ATS CONFIGURATION
CONSISTING OF TWO (2) COLUMNS CONTAINING THE FOLLOWING EQUIPMENT
(2EA) 5KV, 1200A 50VCP-W250 CELLS - EACH CELL CONTAINS:

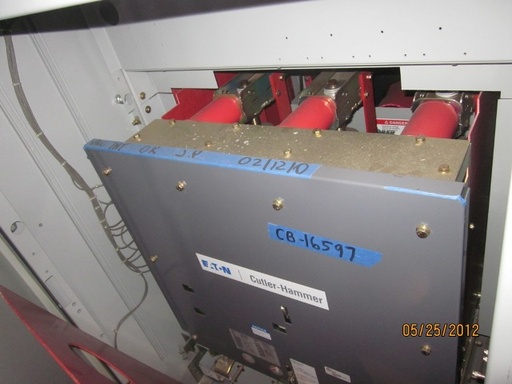

(1EA) CUTLER HAMMER VACUUM BREAKER
-4160VOLT - 1200AMP - 29KA

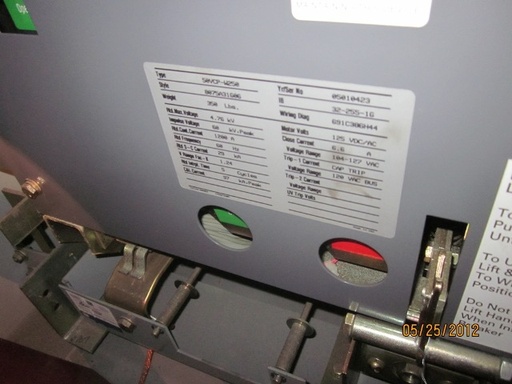

-TYPE 50VCP-W-250
-120VAC CLOSE - 120VAC CAP TRIP - 125VDC MOTOR
(2EA) PT DRAWERS, EACH DRAWER CONTAINS:
(?EA) BAR TYPE POTENTIAL TRANSFORMERS
-4160:120V
(1EA) METERING CUBICLE WITH CUTLER HAMMER
-(1EA) C.H. TYPE: IQ300 MONITORING RELAY
-(1EA) WOODWARD TYPE DTSC ATS CONTROLLER
SWITCHGEAR OVERALL DIMENSIONS: 62"W X 97"D X 94"H
PT DRAWER: 26"W X 97"D X 94"H
**THIS SWITCHGEAR WAS DESIGNED AND ASSEMBLED BY GAVAN & GRAHAM**
