CB-17466

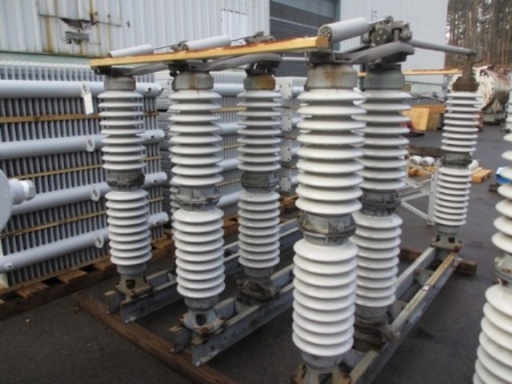

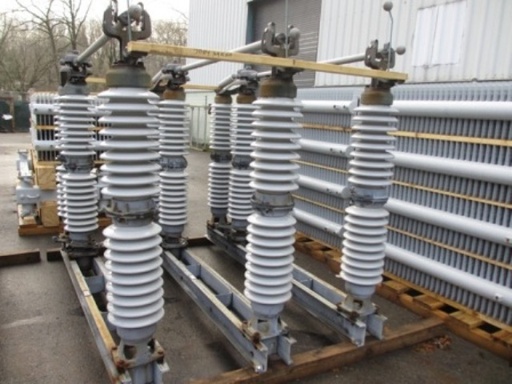

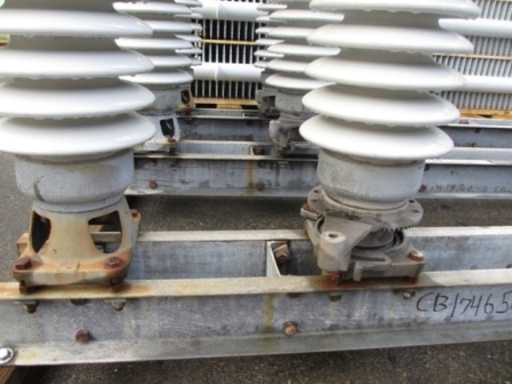

ONE (1) 600 AMP SOUTHERN STATES GANG OPERATED AIR BREAK SWITCH

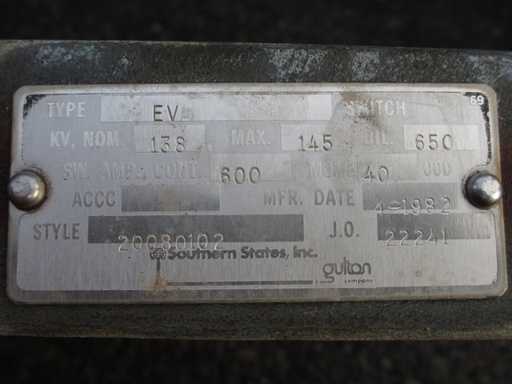

TYPE EV
138 KV
145 KV MAX.
HORIZONTAL MOUNT
VERTICAL BREAK
40 KA MOMENTARY
650 KV BIL
STYLE 20080102
MFG. 04/1982
JO# 22241
OPTIONAL:

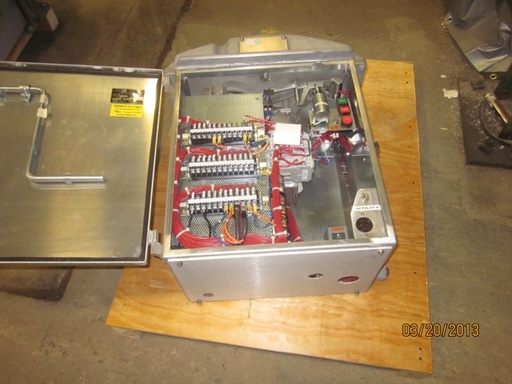

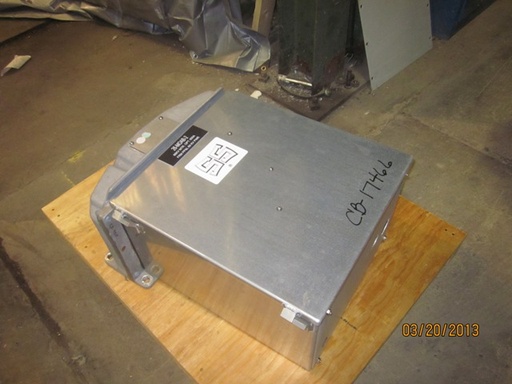

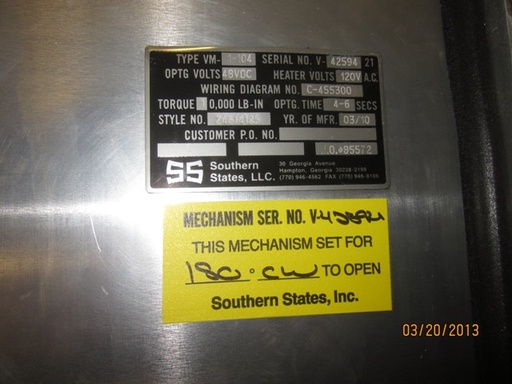

ONE (1) SOUTHERN STATES VM1-104 CONTROLLER
48 VDC OPERATING VOLTS
120 VAC HEATER
WIRING DIAGRAM #C-455300
STYLE 24514125
TORQUE 10,000 LBS. IN 4-6 SECONDS OPERATING TIME
DIAGRAM C-455300
MFG. 03/2010
JO #85572
S/N V-4259421
SET FOR 180 DEG. CLOCK-WISE TO OPEN
