4000 Amp, PASCOR ATLANTIC, No. TTR-6V, 138000 V, VERTICAL MT, V-SLANT   Our stock number: 42780

4000 Amp, PASCOR ATLANTIC, No. TTR-6V, 138000 V, VERTICAL MT, V-SLANT

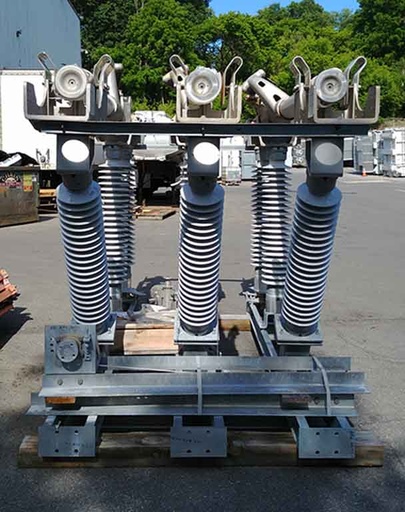

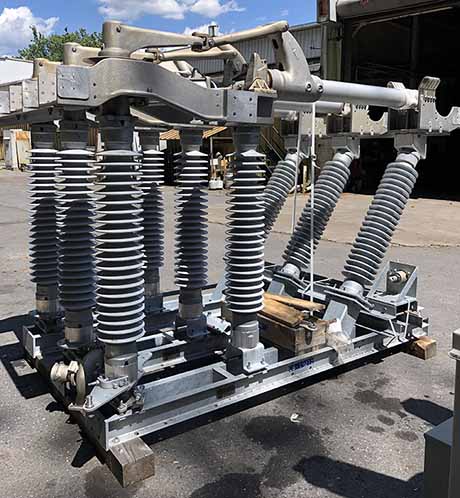

Click on picture below for larger version
4000 Amp, PASCOR ATLANTIC, No. TTR-6V, 138000 V, VERTICAL MT, V-SLANT

CB-19015:

ONE (1) 4000 AMP PASCOR ATLANTIC VERTICAL BREAK GANG OPERATED SWITCH
TYPE TTR-6V
138 KV NOMINAL
145 KV MAX.
100 KA MOMENTARY
63 KA SHORT TIME
550 KV BIL
3 PHASE
60 HERTZ
SINGLE THROW SLATED V
VERTICAL MOUNT
A.C.C.C D06
PEAK WITH 164 KA
MFG. 06/2019
S/N PA12283-01A
