1200 Amp, SOUTHERN STATES, No. EV, 38000 V., 1997, VT MT-HZ BK, 61KA   Our stock number: 39116

1200 Amp, SOUTHERN STATES, No. EV, 38000 V., 1997, VT MT-HZ BK, 61KA

Click on picture below for larger version
1200 Amp, SOUTHERN STATES, No. EV, 38000 V., 1997, VT MT-HZ BK, 61KA1200 Amp, SOUTHERN STATES, No. EV, 38000 V., 1997, VT MT-HZ BK, 61KA

CB-17650

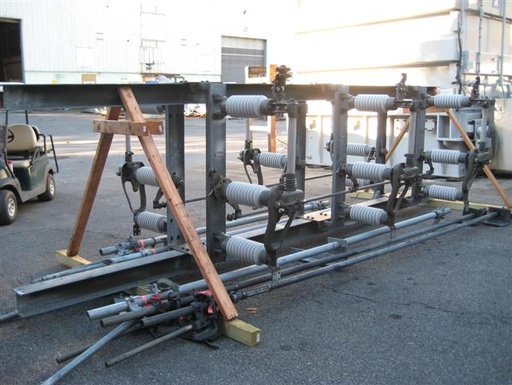

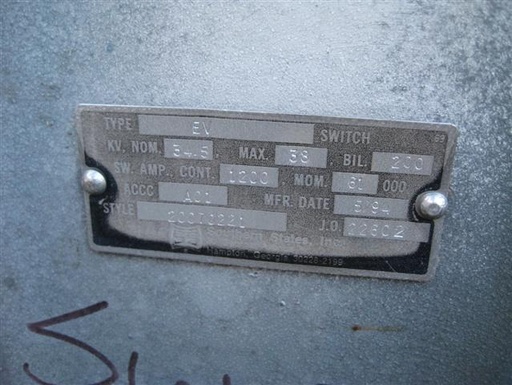

(1EA) 1200 AMP SOUTHERN STATES GANG OPERATED AIR BREAK SWITCH
- 38 KV
- 34.5 KV NOMINAL
- TYPE EV
- 200 KV BIL
- 60 HERTZ
- 61 KA SHORT TIME
- STYLE 20070221
- ACCC AO1
- MFG. 1994 & 1997
- MANUALLY OPERATED
- VERICAL MOUNT
- HORIZONTAL BREAK
PEDESTAL ACESSORY AVAILABLE FOR ADDITIONAL COST
