1200 Amp, SOUTHERN STATES, No. EV, 145000 V., M/O, HZ MT - VT BK, 61KA   Our stock number: 39182

1200 Amp, SOUTHERN STATES, No. EV, 145000 V., M/O, HZ MT - VT BK, 61KA

Click on picture below for larger version
1200 Amp, SOUTHERN STATES, No. EV, 145000 V., M/O, HZ MT - VT BK, 61KA

CB-17657

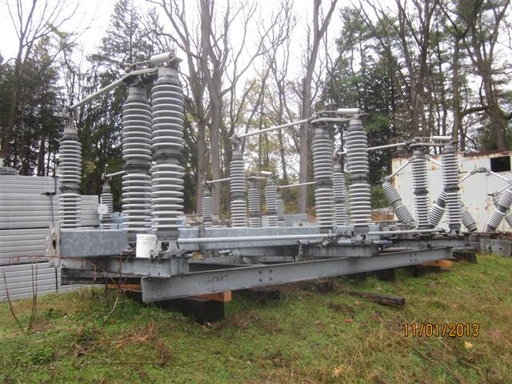

SOUTHERN STATES GANG OPERATED AIR BREAK SWITCH
- 1200 AMP
- TYPE EV
- HORIZONTAL MOUNT
- VERTICAL BREAK
- 138 KV NOMINAL
- 145 KV MAX.
- 650 KV BIL
- 61 KA MOMENTARY

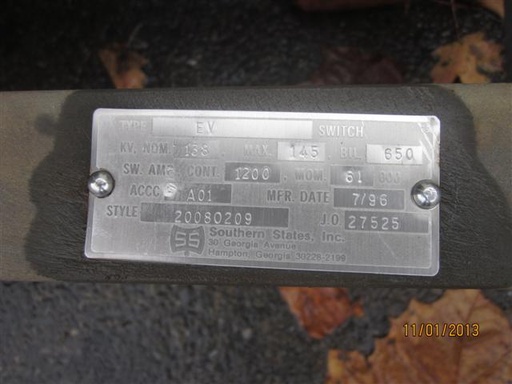

- STYLE 20080109
- 3 POLE
- MFG. 7/1996
- SO #27525
- MANUALLY OPERATED
107"H X 256"W X 222"D

WE DO HAVE PEDESTAL ACCESSORIES AVIALABLE FOR THESE UNITS IN 2
DIFERENT SIZES AVAILABLE FOR AN ADDITIONAL COST
