2000 Amp, ABB, No. 145 PMI 40-20, 145000 V., 1993, 40kA Short, HMB-1.5 Mech   Our stock number: 46392

2000 Amp, ABB, No. 145 PMI 40-20, 145000 V., 1993, 40kA Short, HMB-1.5 Mech

Click on picture below for larger version
2000 Amp, ABB, No. 145 PMI 40-20, 145000 V., 1993, 40kA Short, HMB-1.5 Mech2000 Amp, ABB, No. 145 PMI 40-20, 145000 V., 1993, 40kA Short, HMB-1.5 Mech

One (1) 2000 Amp ABB SF6 Circuit Breaker
145kV Max
60hz
Type 145PMI 40-20
40kA Short
650kV BIL
1.0 K Factor
3 Cycle Interrupt
HMB-1.5 Mech
125VDC Close and Trip
240 VAC motor
87 PSIG Norm Oper Pressure
76 PSIG Low Pressure Alarm
72 PSIG Auto Trip/Block Close

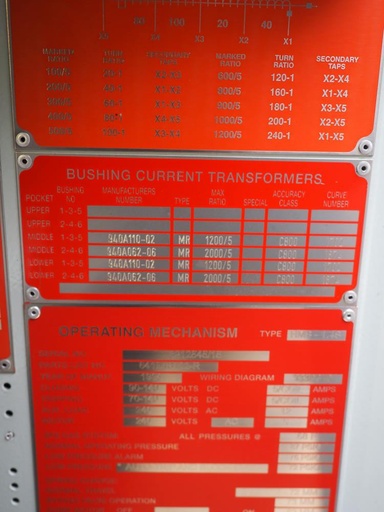

6x 2000:5 MRCTs C800
6x 1200:5 MRCTs C800

Total Weight : 6400lbs
Weight w/o Gas : 6336lbs
Gas Per Breaker: 64lbs
