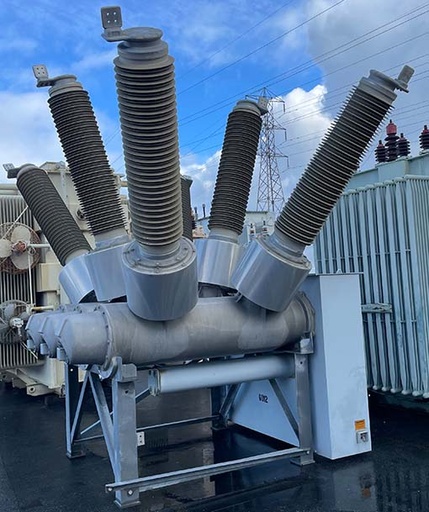

ONE (1) MITSUBISHI GAS CIRCUIT BREAKER

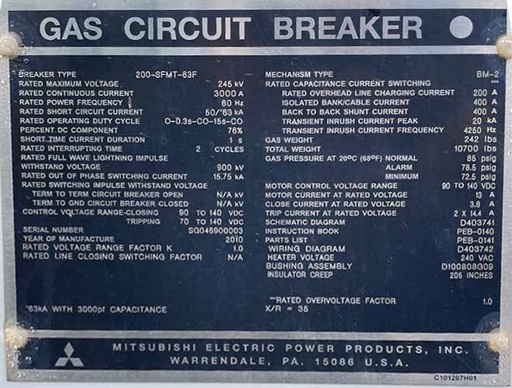

TYPE: 200-SFMT-63F
245 KV MAX.
3000 AMP. CONT.
60 HZ
50/63 KA SHORT CIRCUIT CURRENT
900 KV IMPULSE/BIL
2 CYCLE INTERRUPT
1.0 VOLTAGE RANGE FACTOR"K"
OPERATING MECHANISM DETAILS
TYPE: BM-2
125 VDC CLOSE
125 VDC TRIP
125 VDC MOTOR
METERING ACCESORY DETAILS
(18 EA) MRCT'S *ADDITIONAL CT'S MAY BE AVAILABLE*
CLASS C800
WEIGHTS
INSTALLED WT. W/ GAS: 10700 LBS *GAS NOT INCLUDED*
SHIPPING WT. W/O GAS: 10458 LBS
DIMENSIONS: OVERALL:
SHIPPING:
