CB-18586

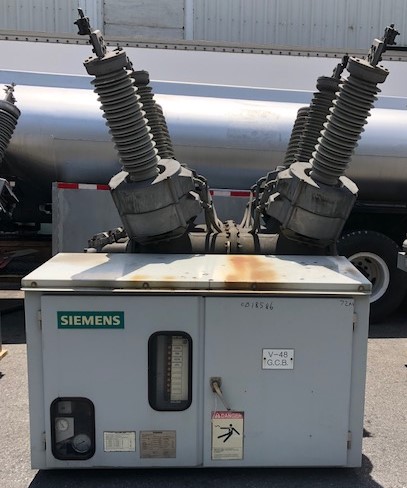

ONE (1) 3000 Amp Siemens SF6 Circuit Breaker

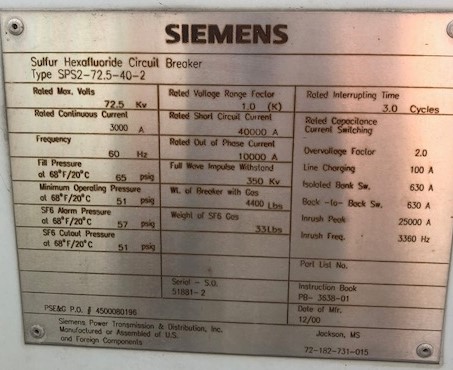

Type SPS2-72.5-40-2
72.5 KV Max. volt.
40 KA Short Circuit Current
60 HZ
350 KV Impulse
3 Cycle Interrupt
10 KA Out of Phase
Voltage Range Factor "K" - 1.0
12 x 2000:5 Multi Ratio CT's, C800 Class
FA2.20 Spring Charged Operating Mechanism
120 VDC C & T
120 VAC Motor
Fill 65 PSIG
Min. Operating 51 PSIG
Alarm 57 PSIG
Cutout Pressure 51 PSIG
Weight with Gas - 4400 lbs.
Weight without Gas - 4367 lbs.
Breaker Gas - 33 lbs.
Instruction Manual - PB-3638-01
Control Diagram 72-480-720-408
