CB-19021:

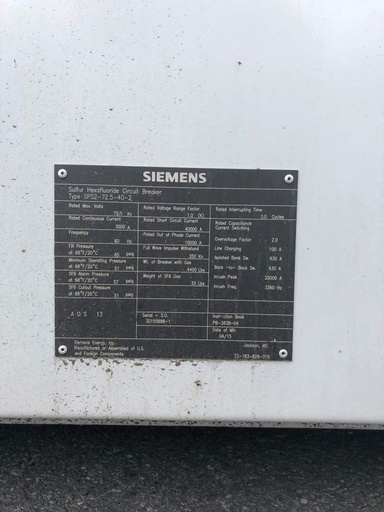

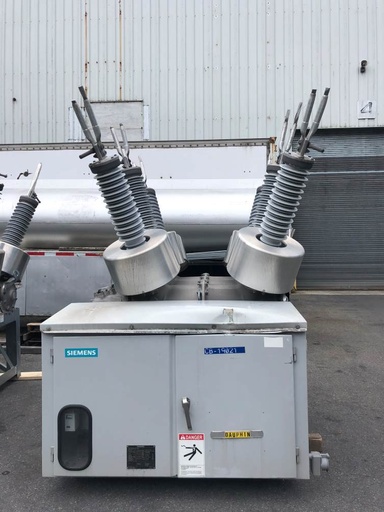

ONE (1) 3000 AMP SIEMENS SF6 CIRCUIT BREAKER
TYPE SPS2-72.5-40-2
72.5 KV MAX. VOLTS
1.0 VOLTAGE RANGE FACTOR K
3.0 CYCLE INTERRUPT
40 KA SHORT CIRCUIT
60 HERTZ
10 KA OUT OF PHASE
65 PSIG FILL PRESSURE
51 PSIG MINIMUM OPERATING PRESSURE
57 PSIG ALARM PRESSURE
51 PSIG CUT-OUT PRESSURE
350 KV BIL
4,400 LBS. WITH GAS
33 LBS. OF GAS
INST. BOOK PB-3638-04

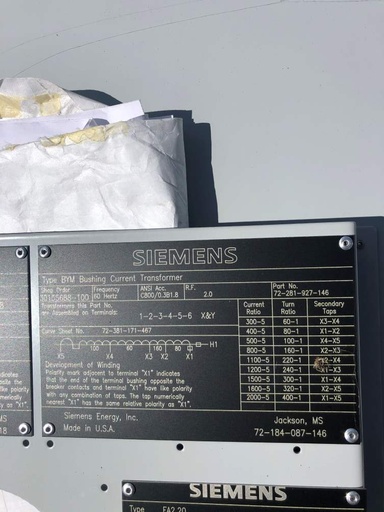

12 X 2000:5 MRCT'S C800
12 x 2000:5 0.3-b1.8 Metering Class Accuracy
3 X LINEAR COUPLERS
FA2.20 MECHANISM
125 VDC CLOSE & TRIP
240 VAC MOTOR
CONTROL DIAGRAM 72-481-080-482
DIMENSIONS 92"H X 97"W X 66"D
