CB-19130:

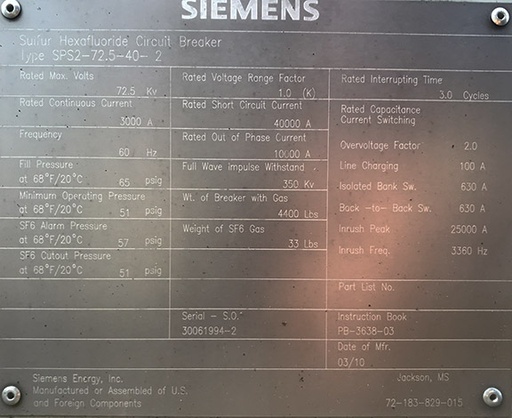

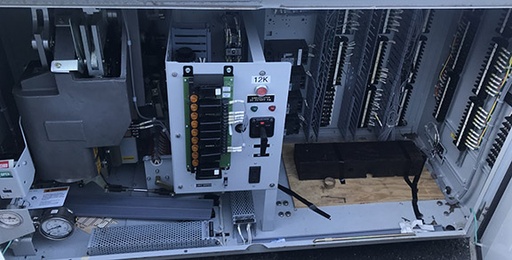

ONE (1) 3000 AMP SIEMENS SF6 CIRCUIT BREAKER
TYPE SPS2-72.5-40-2
72.5 KV MAX.
1.0 VOLTAGE RANGE FACTOR K
3 CYCLE INTERRUPT
40 KA SHORT CIRCUIT
10 KA OUT-OF PHASE
350 KV BIL
65 PSIG FILL PRESSURE
51 PSIG MINIMUM OPERATING PRESSURE
57 PSIG ALARM PRESSURE
51 PSIG CUTOUT PRESSURE
6 X 2000:5 MRCT'S
FA2.20 SPRING CHARGED OPERATING MECHANISM
125 VDC CLOSE & TRIP
120 VAC MOTOR
CONTROL DIAGRAM 72-480-975-485
INST. BOOK PB-3638-03
4,400 LBS. WITH GAS
33 LBS. OF GAS
