CB-19026:

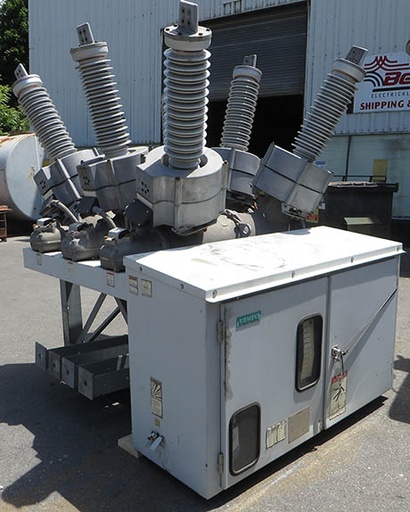

ONE (1) 3000 AMP SIEMENS SF6 CIRCUIT BREAKER
TYPE SPS2-72.5-40-2
72.5 KV MAX. VOLTAGE
3 CYCLE INTERRUPT
40 KA SHORT CIRCUIT
60 HERTZ
350 KV BIL
3600 LBS. WITH GAS
33 LBS. OF GAS
65 PSIG FILL PRESSURE

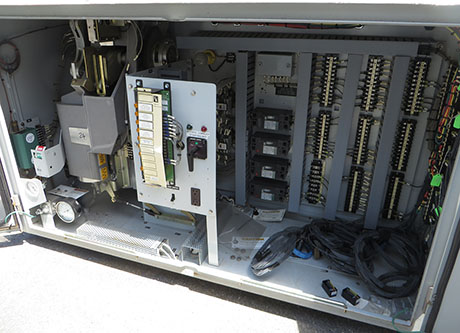

FA2.20 MECHANISM
125 VDC CLOSE & TRIP
120 VAC MOTOR
6 X 2000:5 MRCT'S CLASS C-800
1 X CONTROL SWITCH
2 X LIGHTS
1 X ANNUNCIATOR BOARD
INSTRUCTION BOOK PB-3638-03
CONTROL DIAGRAM 72-480-730-480
