CB-19260

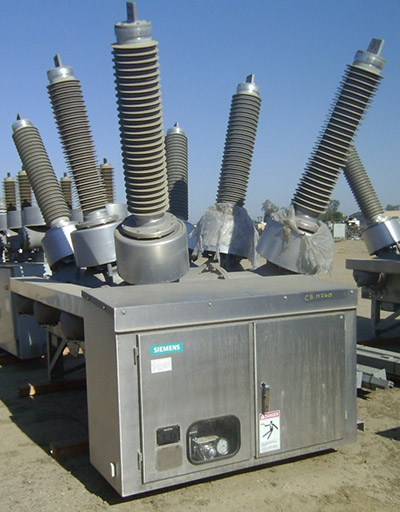

ONE (1) 3000A Siemens SF-6 Circuit Breaker New Unused
170 kV Rated Max Volts
Rated Voltage Range Factor 1.0 (K)
63 KA Rated Short Circuit Current
Rated Out of Phase Current 15.8 KA
60 Hertz, 3 Cycle Interrupt
750 kV BIL
Weight of breaker with Gas 8000 lbs.
Weight of SF6 Gas 128 lbs.
87 psig Rated Operating Pressure at 68F / 20C

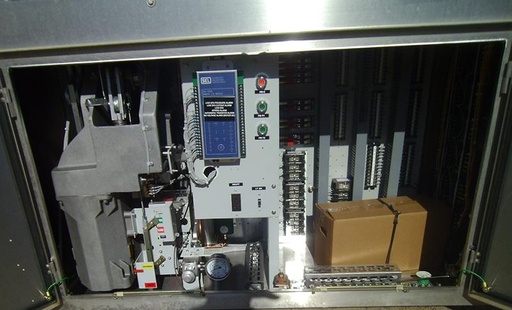

Stainless Steel Control Box
Instruction Book: PB-3658-05
SEL-2505 Remote I/O Module
Polymer Bushing
BYM Type Bushing CT's
6 - 3000:5 C800 MRCT'S

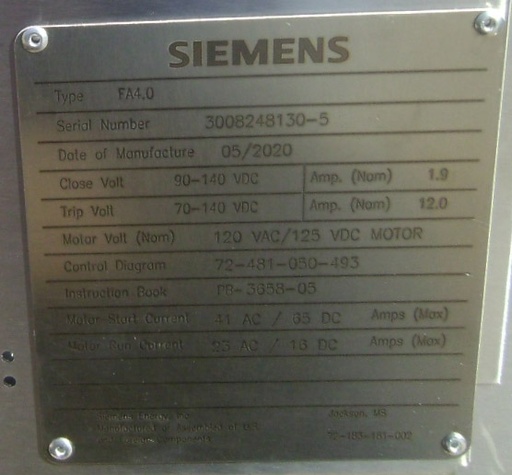

FA4.0 Spring Charge Operating Mechanism
125 VDC Close & Trip
120 VAC / 125 VDC Motor
Control Diagram: 72-481-050-493
