CB-19749

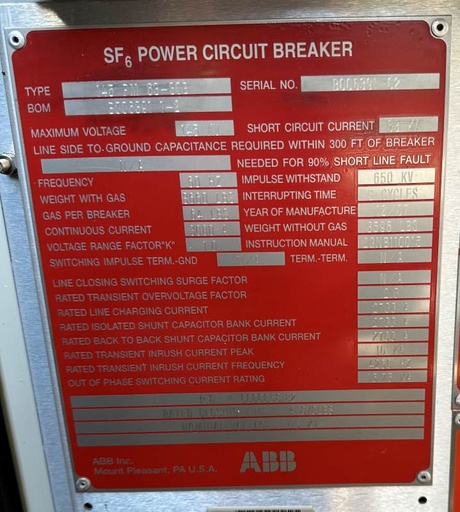

ONE (1) 3000 AMP ABB SF6 POWER CIRCUIT BREAKER
TYPE 145-PM-63-30B
145 KV MAX
650 KV BIL
63.0 KA SHORT CIRCUIT
3.0 CYCLE INTERRUPTING TIME
1.0 RATED K FACTOR
87 PSIG OPERATING PRESSURE
OPERATING MECHANISM SPRING TRAVEL
TYPE HMB-2.0
125 VDC CLOSE
125 VDC TRIP (2 TRIP COILS)
120 VAC MOTOR
BUSHING CT'S
TWELVE (12) TYPE MR 3000:5 RATIO C800
THREE (3) TYPE SR 800/5 RATIO TRF
TOTAL WEIGHT: 8596 LBS
WEIGHT OF GAS PER BREAKER: 64 LBS
