2000 Amp, SIEMENS, SP-38-31.5-3, 38 KV, 1994, 125 VDC CLOSE/TRIP, SA-7 MECH: 1   Our stock number: 40266

2000 Amp, SIEMENS, SP-38-31.5-3, 38 KV, 1994, 125 VDC CLOSE/TRIP, SA-7 MECH: 1

Click on picture below for larger version
2000 Amp, SIEMENS, SP-38-31.5-3, 38 KV, 1994, 125 VDC CLOSE/TRIP, SA-7 MECH: 12000 Amp, SIEMENS, SP-38-31.5-3, 38 KV, 1994, 125 VDC CLOSE/TRIP, SA-7 MECH: 1

CB-18143:

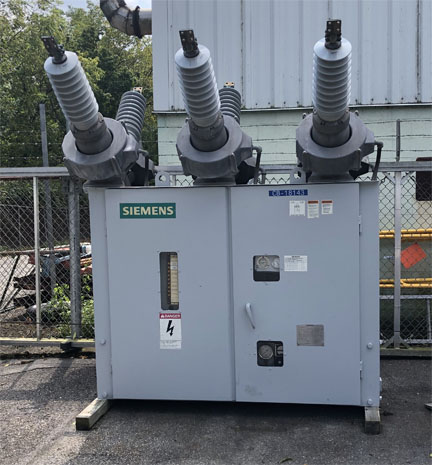

ONE (1) 2000 AMP SIEMENS SF6 CIRCUIT BREAKER
TYPE SP-38-31.5-3
38 KV MAX. VOLTS
1.0 K VOLTAGE RANGE FACTOR
3.0 CYCLES INTERRUPT
31.5 KA SHORT CIRCUIT
60 HERTZ
200 KV BIL

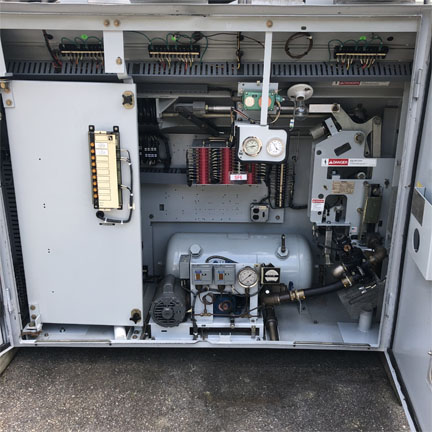

SA-7 PNEUMATIC MECHANISM
125 VDC CLOSE & TRIP
120 VAC MOTOR
INSTRUCTION BOOK PB-3468-05
CONTROL DIAGRAM 72-480-441-490
3,200 LBS. WITH GAS
15 LBS. OF GAS
6 X 2000:5 MRCT'S, CLASS C800, TYPE BYM
